ODXS936 Fiber-optic amplifier
Fiber-Optic Amplifier
In Stock
$319.00
per unit
Applications: Sensors & I/O
Description

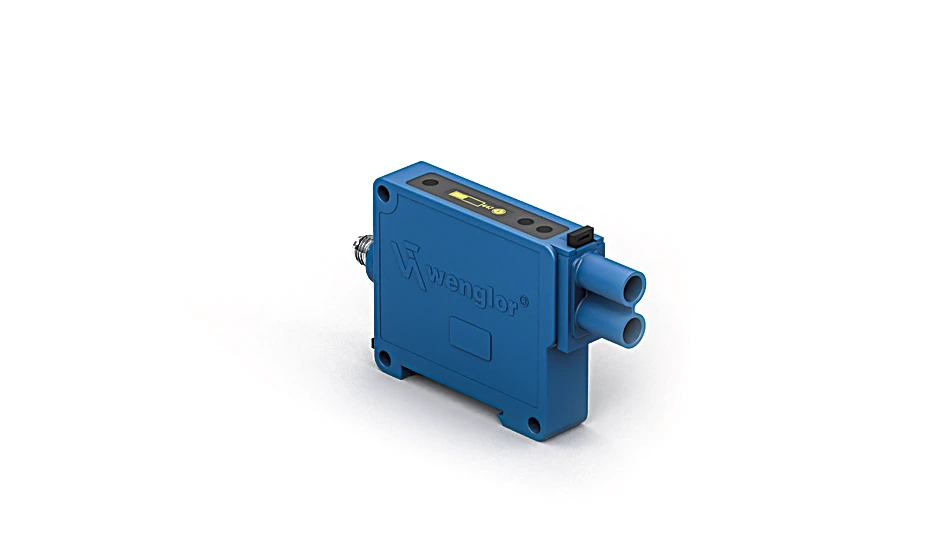

wenglor fiber-optic cables are connected to these sensors. The graphic display assures easy, menu-driven sensor setup. Signal strengths and the switching threshold can be read from the display as numeric values or as a bar graph. Convenient programming and quick diagnosis is possible via the IO-Link interface.
Features at a Glance
- Recognition of transparent objects
- External teach-in
- Mount for fiber optic cable adapter 3
- Increased light output
- Menu-driven settings
Technical Data
Optical Data
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Wavelength | 660 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 50 mA |
| Switching Frequency | 4 kHz |
| Response Time | 125 µs |
| On-/Off-Delay | 0 … 10,000 ms |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 50 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Teach Mode | NT, MT, ZT, DT, FT, HT, TP |
| Interface | IO-Link V1.0 |
| IO-Link Parameter | > 12 |
| Protection Class | III |
Mechanical Data
| Setting Method | Menu (OLED) |
| Housing Material | Plastic, ABS Plastic, PC |
| Degree of Protection | IP65 |
| Connection | M8 × 1; 4-pin |
| DIN-Rail mounting | 35 mm |
| Weight | 42 g |
General Data
| Selectable menu language | X |
| Password Protection | X |
| Scope of delivery | 1 × sensor |
Output
| IO-Link | yes |
| PNP NO | yes |
| External teach-in input | yes |
Adjustable parameters
| Output | Push-pull PNP |
| Circuit | NC NC/NO NO |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
60 = display
20 = Enter key 22 = Up key 23 = Down key |
