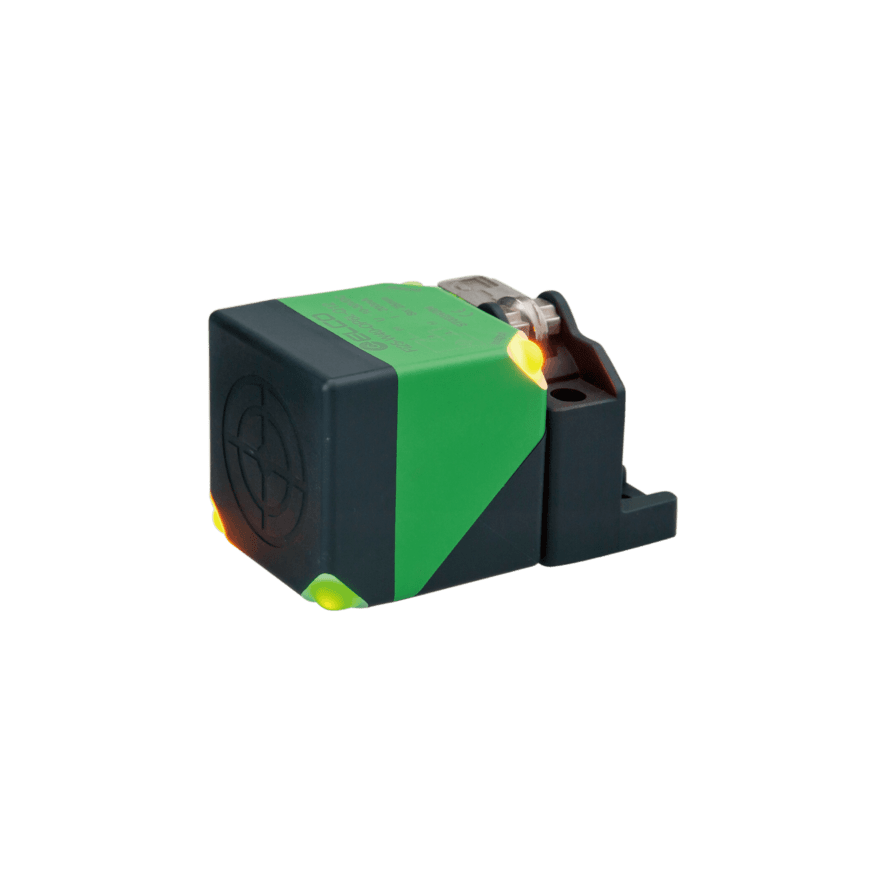

NI40-C40-NE-Q12 Inductive Sensor
Inductive Sensor, Rectangular housing W40, Switching distance 40m m, Non-flush, IP67, -25…70 °C, NAMUR NC, M12 connector
In Stock
$60.21
per unit
Applications: Sensors & I/O
Technical Data
| External dimensions | Square |
| Output type | NAMUR |
| Supply voltage | 7.7 … 9 V DC |
| Sensing range | 40 mm |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NC |
| Switching frequency | 150 Hz |
| Mounting | Non-flush |
| Product size | 66 x 40 x 40 mm |
| Connection | M12, 4-pin |
| Sensing surface material | PA |
| Housing material | PA |
| IP rating | IP67 |
