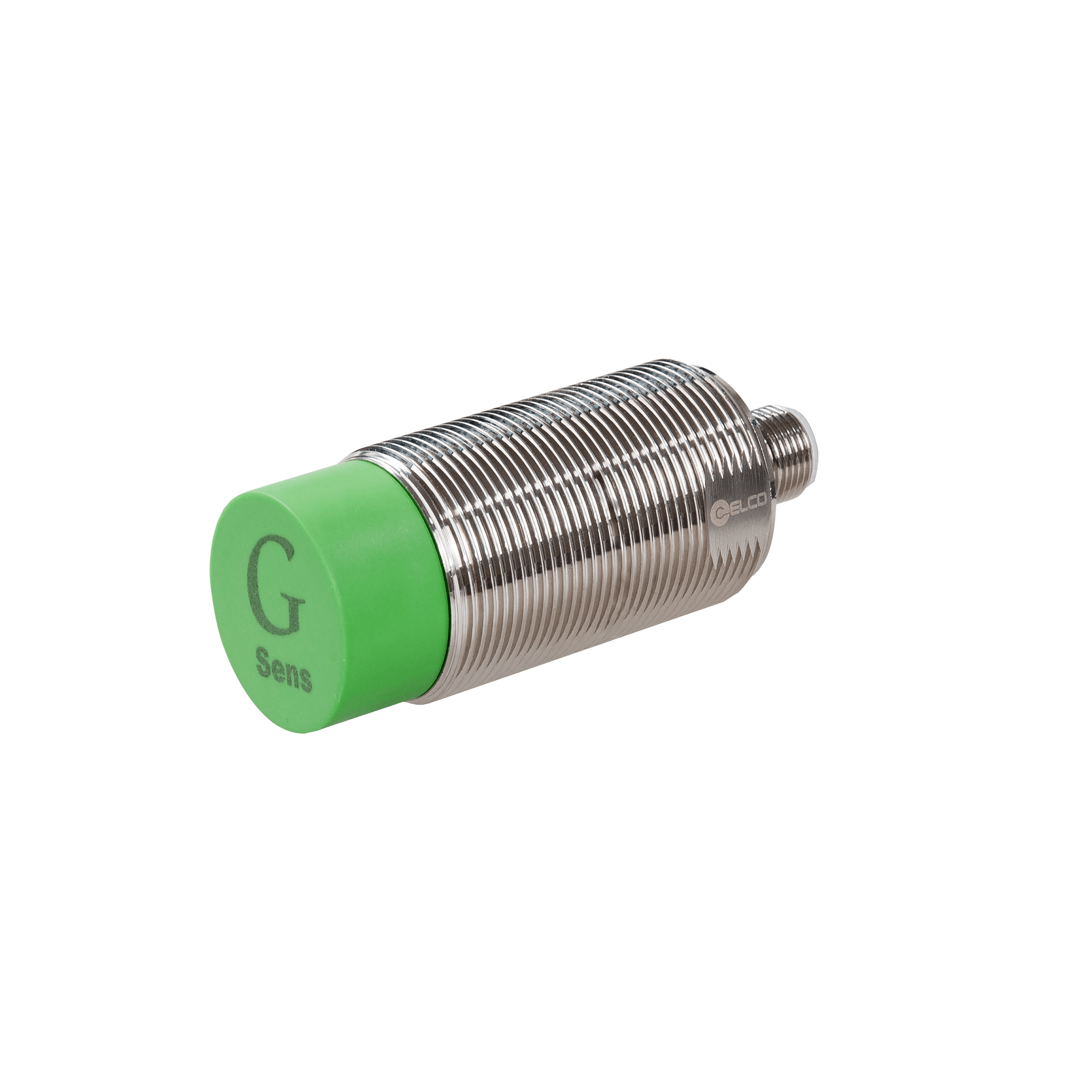

NI30-G30-CP6L-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M30, Switching distance 30 mm, Non-flush, IP68, -30…85 °C, PNP NC, M12 connector
In Stock
$35.20
per unit
Applications: Sensors & I/O
Technical Data
| Housing material | Nickel-plated brass |
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| Sensing range | 30 mm |
| Switching frequency | 75 Hz |
| Supply voltage | 10 … 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NC |
| Ambient temperature | -30 … +85 ℃ |
| External dimensions | M30 x 1.5 |
| Output type | PNP |
| Mounting | Non-flush |
| Product size | M30 x 80 mm |
| IP rating | IP68 |
