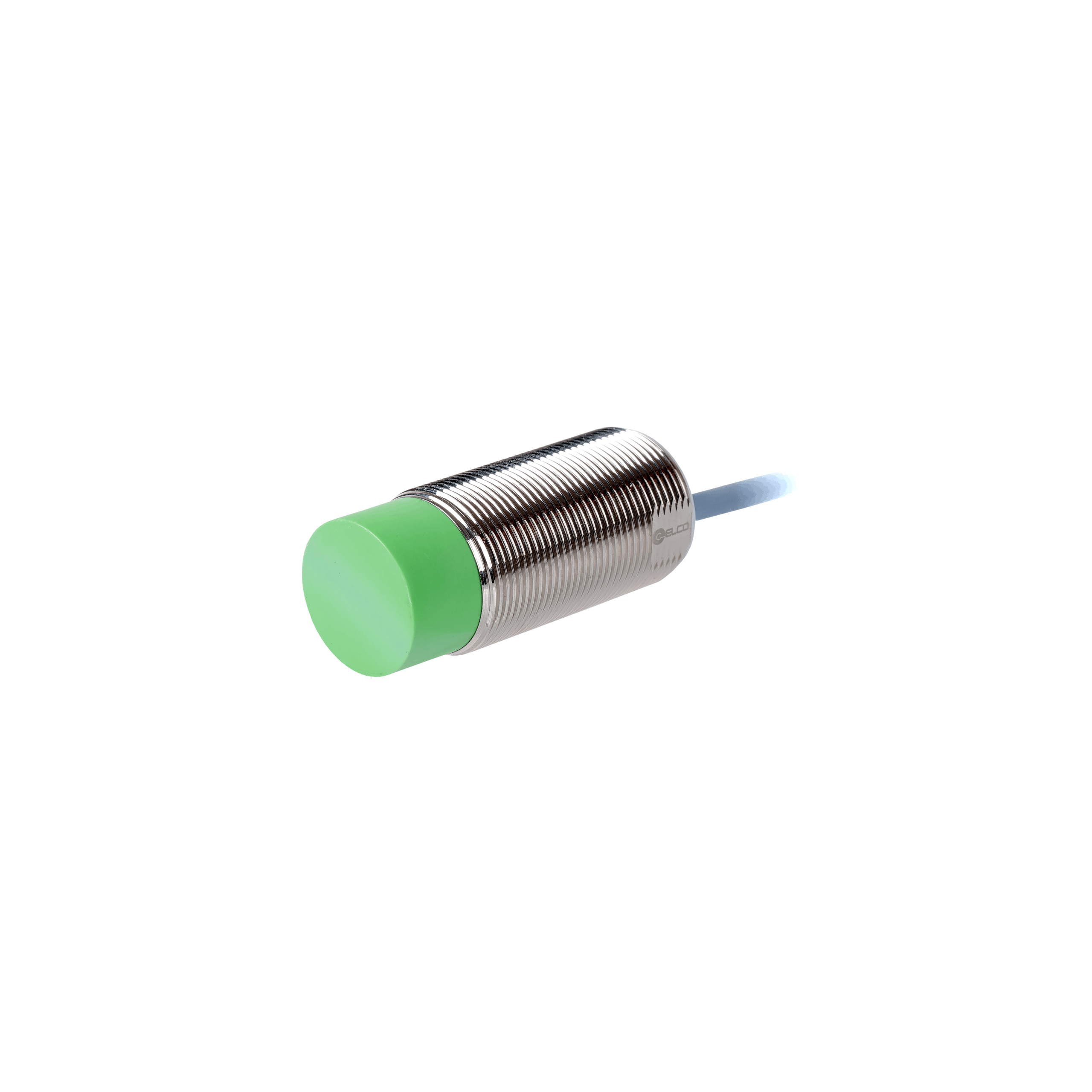

NI22-ZG30-CP6L Inductive Sensor
Inductive Sensor, Threaded cylindrical stainless steel housing M30, Switching distance 22 mm, Non-flush, IP68, -40…85 °C, PNP NC, Cable PUR 2 m
In Stock
$50.02
per unit
Applications: Sensors & I/O
Technical Data
| Cable type | PVC |
| Connection | Cable |
| IP rating | IP68 |
| Sensing range | 4 mm |
| Housing material | Stainless steel |
| Sensing surface material | PBT |
| Switching frequency | 200 Hz |
| Supply voltage | 10 … 30 V DC |
| Ambient temperature | -40 … +85 ℃ |
| Load current | ≤ 200 mA |
| Output status | NC |
| Output type | PNP |
| External dimensions | M30 x 1.5 |
| Mounting | Non-flush |
| Product size | M30 x 69 mm |
| Cable length | 2 m |
