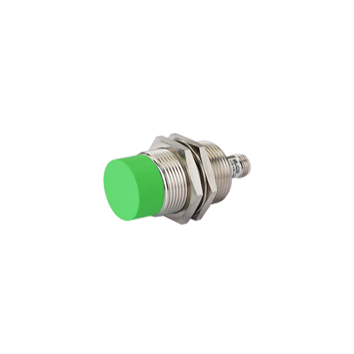

NI15-M30-LIU-Q12 Inductive Sensor
Inductive Sensor, Threaded cylindrical housing M30, Switching distance 3…15 mm, Non-flush, IP67, -25…70 °C, 0…20 mA & 0…10 V DC, M12 connector
In Stock
$49.10
per unit
Applications: Sensors & I/O
Technical Data
| Connection | M12, 4-pin |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| IP rating | IP67 |
| Ambient temperature | -25 … +70 ℃ |
| Sensing range | 15 mm |
| Switching frequency | 200 Hz |
| Supply voltage | 10 … 30 V DC |
| External dimensions | M30 x 1.5 |
| Output type | Current + Voltage |
| Mounting | Non-flush |
| Product size | M30 x 86 mm |
