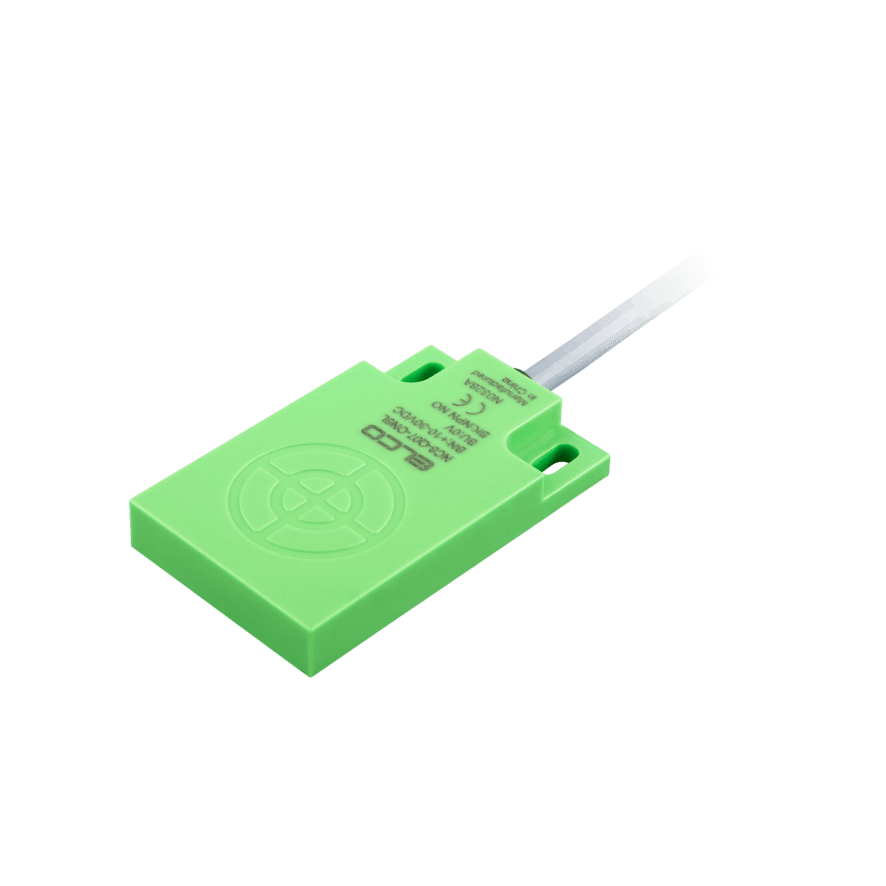

NC8-Q07-ON6L Capacitive Sensor
Capacitive Sensor, Plastic rectangular housing Q07, Switching distance 8 mm, Non-flush, IP67, -25…70 °C, NPN NO, Cable 2 m
In Stock
$19.45
per unit
Applications: Sensors & I/O
Technical Data
| Output status | NO |
| Ambient temperature | -25 … +70 ℃ |
| Load current | ≤ 200 mA |
| Supply voltage | 10 … 30 V DC |
| Connection | Cable |
| Switching frequency | 30 Hz |
| Sensing surface material | PBT |
| Housing material | PBT |
| IP rating | IP67 |
| Cable length | 2 m |
| Cable type | PVC |
| Mounting | Non-flush |
| Sensing range | 8 mm |
| Product size | 50 x 30 x 7 mm |
| External dimensions | Square |
| Output type | NPN |
