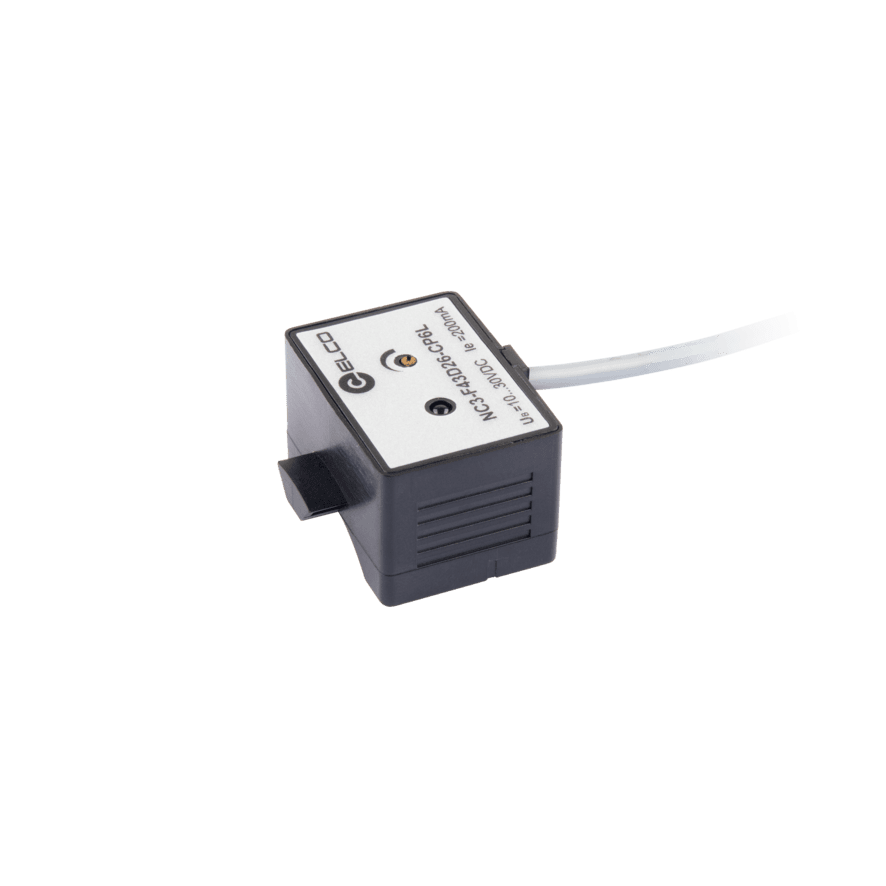

NC3-F43D26-CN6L Capacitive Sensor
Capacitive Sensor, Plastic tube mounting housing F43D26, Switching distance 3 mm, Tube diameter 12…26 mm, Non-flush, IP67, -25…70 °C, NPN NC, Cable 2 m
In Stock
$45.39
per unit
Applications: Sensors & I/O
Technical Data
| Mounting | Non-flush |
| Output status | NC |
| Load current | ≤ 200 mA |
| Sensing range | 3 mm |
| Output type | NPN |
| Cable length | 2 m |
| Product size | 34 x 33 x 20 mm |
| Supply voltage | 10 … 30 V DC |
| Sensing surface material | PBT |
| IP rating | IP67 |
| External dimensions | Square |
| Housing material | PBT |
| Connection | Cable |
| Cable type | PVC |
| Ambient temperature | -25 … +70 ℃ |
