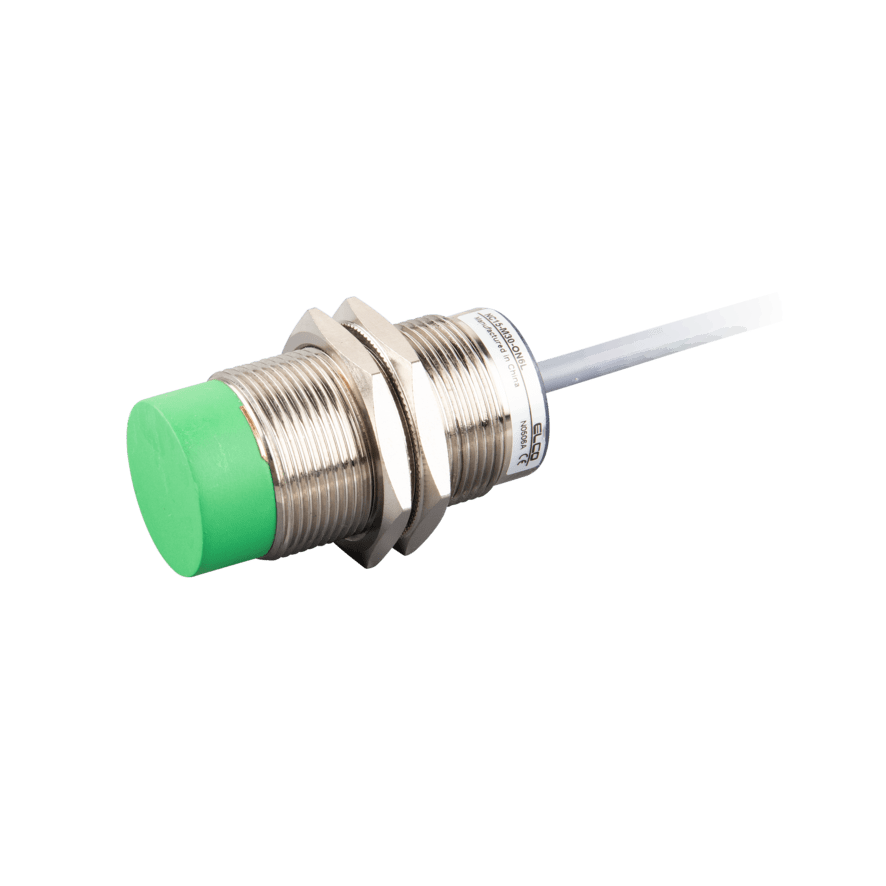

NC15-M30-BP6L Capacitive Sensor
Capacitive Sensor, Metal threaded cylindrical housing M30, Switching distance 15 mm, Non-flush, IP67, -25…70 °C, PNP NO+NC, Cable 2 m
In Stock
$37.52
per unit
Applications: Sensors & I/O
Technical Data
| Mounting | Non-flush |
| Sensing surface material | PBT |
| Supply voltage | 10 … 30 V DC |
| Output status | NO + NC |
| Connection | Cable |
| Load current | ≤ 200 mA |
| Product size | M30 x 59.3 mm |
| Cable type | PVC |
| Ambient temperature | -25 … +70 ℃ |
| Sensing range | 15 mm |
| Housing material | Nickel-plated brass |
| IP rating | IP67 |
| External dimensions | M30 x 1.5 |
| Cable length | 2 m |
| Switching frequency | 50 Hz |
| Output type | PNP |
