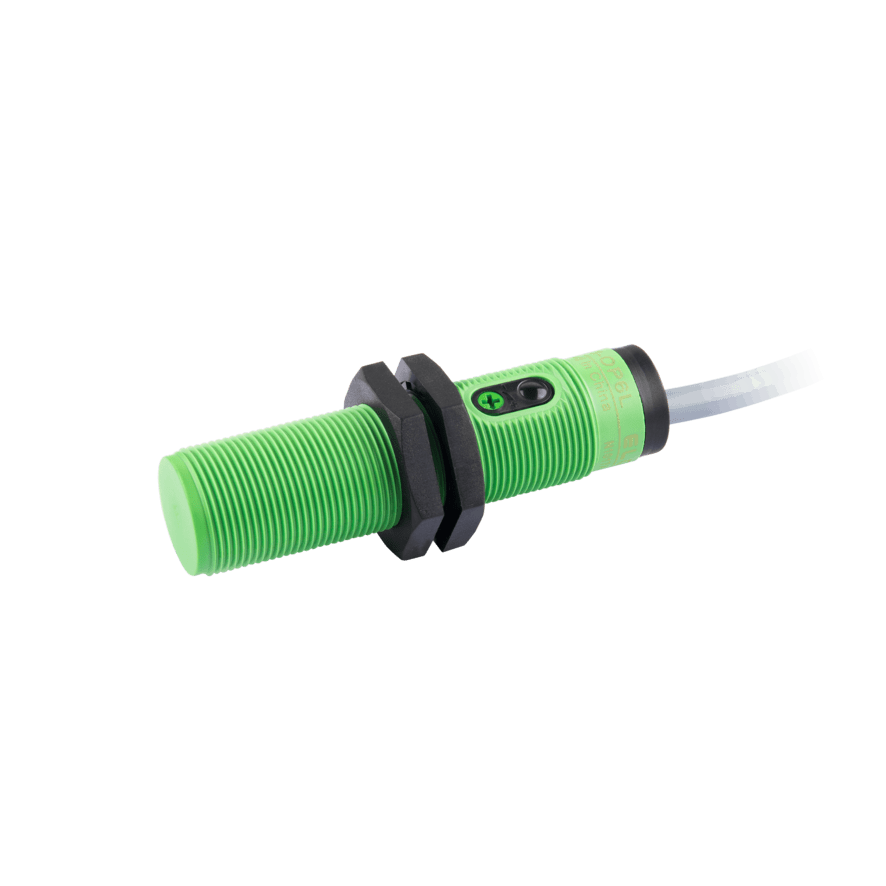

NC12-P18-OP6L Capacitive Sensor
Capacitive Sensor, Plastic threaded cylindrical housing P18, Switching distance 12 mm, Non-flush, IP67, -25…70 °C, PNP NO, Cable 2 m
In Stock
$31.50
per unit
Applications: Sensors & I/O
Technical Data
| Mounting | Non-flush |
| Supply voltage | 10 … 30 V DC |
| Cable type | PVC |
| Cable length | 2 m |
| External dimensions | M18 x 1 |
| Housing material | PBT |
| Output status | NO |
| Sensing surface material | PBT |
| Output type | PNP |
| Load current | ≤ 200 mA |
| Sensing range | 12 mm |
| Product size | M18 x 70 mm |
| Connection | Cable |
| Ambient temperature | -25 … +70 ℃ |
| Switching frequency | 15 Hz |
| IP rating | IP67 |
