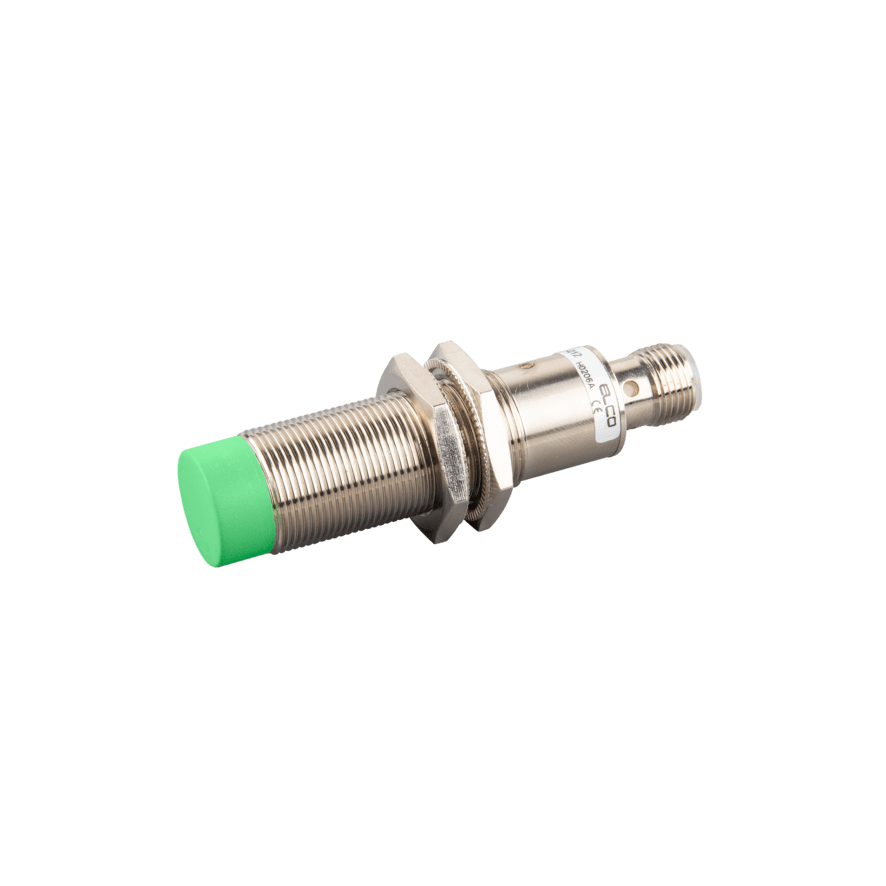

NC12-KM18-BP6L-Q12 Capacitive Sensor
Capacitive Sensor, Stainless steel threaded cylindrical housing KM18, Switching distance 12 mm, Non-flush, IP67, -25…70 °C, PNP NO+NC, M12 4-pole
In Stock
$32.42
per unit
Applications: Sensors & I/O
Technical Data
| Mounting | Non-flush |
| Output status | NO + NC |
| Switching frequency | 15 Hz |
| Sensing range | 12 mm |
| External dimensions | M18 x 1 |
| Load current | ≤ 200 mA |
| IP rating | IP67 |
| Supply voltage | 10 … 30 V DC |
| Product size | M18 x 81 mm |
| Output type | PNP |
| Connection | M12, 4-pin |
| Ambient temperature | -25 … +70 ℃ |
| Sensing surface material | PBT |
| Housing material | Stainless steel |
