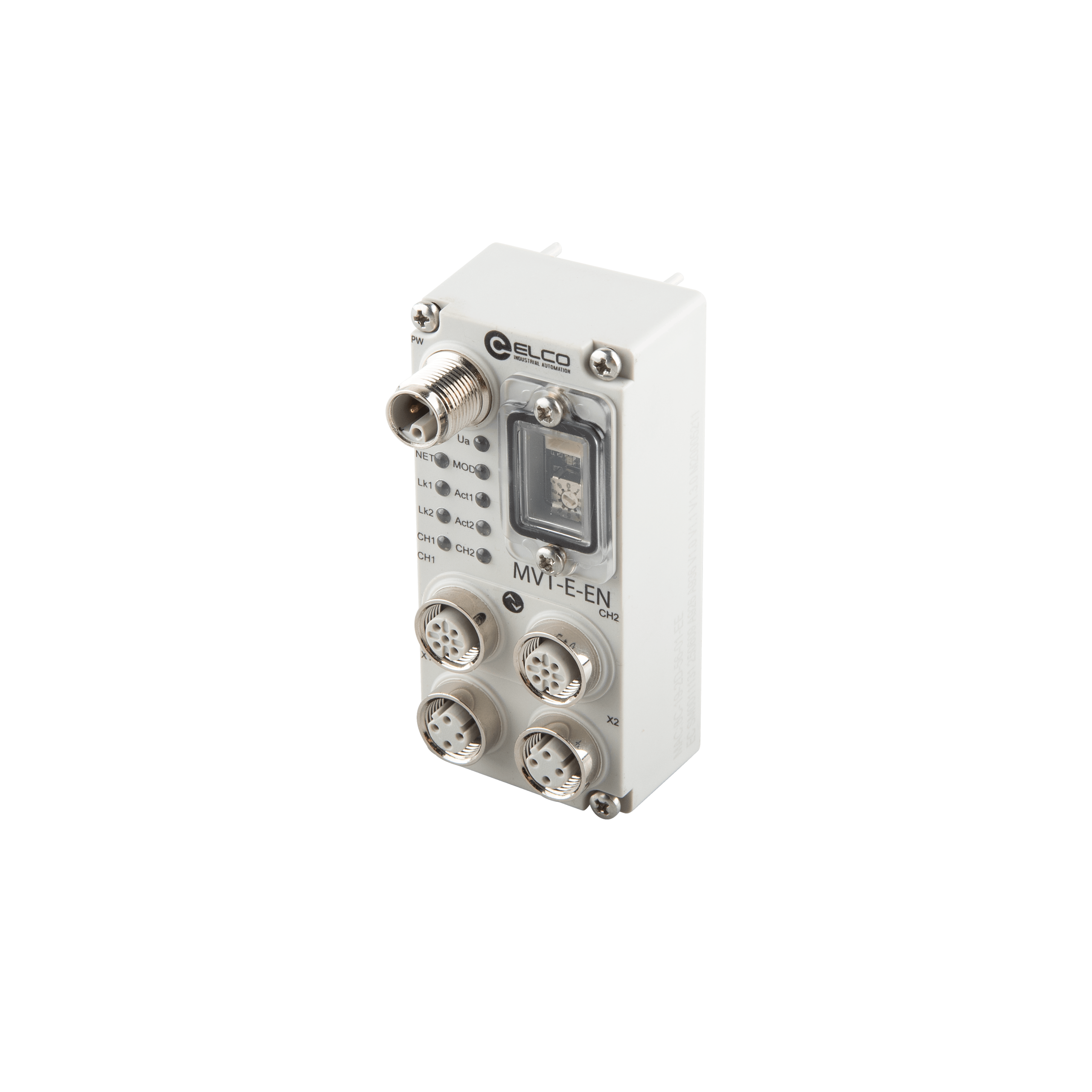

MVT-E-EN Pneumatic Interface
Pneumatic Interface, Multi-protocol Integrated Io-link Expansion Port for Pneumatic Manifold, 48 Outputs, M12 Connector, L-CODE power interface, 5-pole, Male, Two IO-Link interface, Class-A, 5 pin, Female, A-CODE, Two D-CODE bus interfaces, 4-pole, Female, The three protocols are Profinet, CC-Link IEFB, Ethernet/IP.
In Stock
$249.19
per unit
Applications: Motion Control
Technical Data
| Max. number of solenoids | 48 |
| Power connection | 1 X M12, L-CODE, 5-pin, Male |
| Supply voltage | 24 V |
| Matching valve terminal series | FESTO VTUG, ELCO MVTG |
| Max. number of valve positions | 24 |
| Storage temperature | -20 … +70 ℃ |
| Certificate | CE |
| Ambient temperature | -5 … +60 ℃ |
| IP rating | IP67 |
| Communication protocol | PROFINET, CC-Link IE Field Basic, EtherNet/IP |
