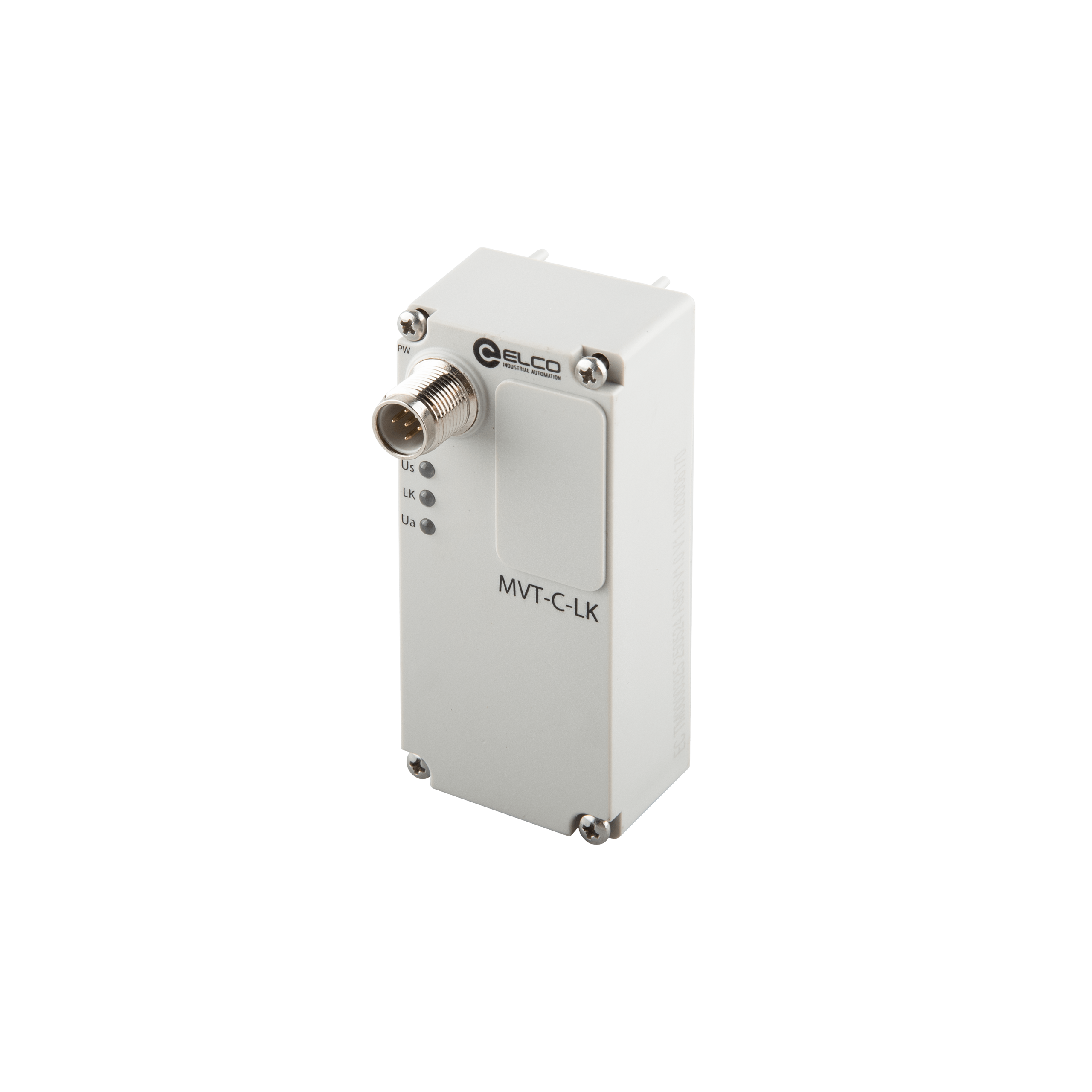

MVT-C-LK Pneumatic Interface
Pneumatic Interface, Io-link Interface for Pneumatic Manifold, 48 Outputs, M12 Connector, Class-B interface, 5-pole, Male.
In Stock
$139.92
per unit
Applications: Motion Control
Technical Data
| Communication protocol | IO-Link |
| Max. number of valve positions | 24 |
| Power connection | Class-B, 1 X M12, A-CODE, 5-pin, Male |
| Supply voltage | 24 V |
| Matching valve terminal series | FESTO VTUG, ELCO MVTG |
| Certificate | CE |
| Max. number of solenoids | 48 |
| Ambient temperature | -5 … +60 ℃ |
| Storage temperature | -20 … +70 ℃ |
| IP rating | IP67 |
