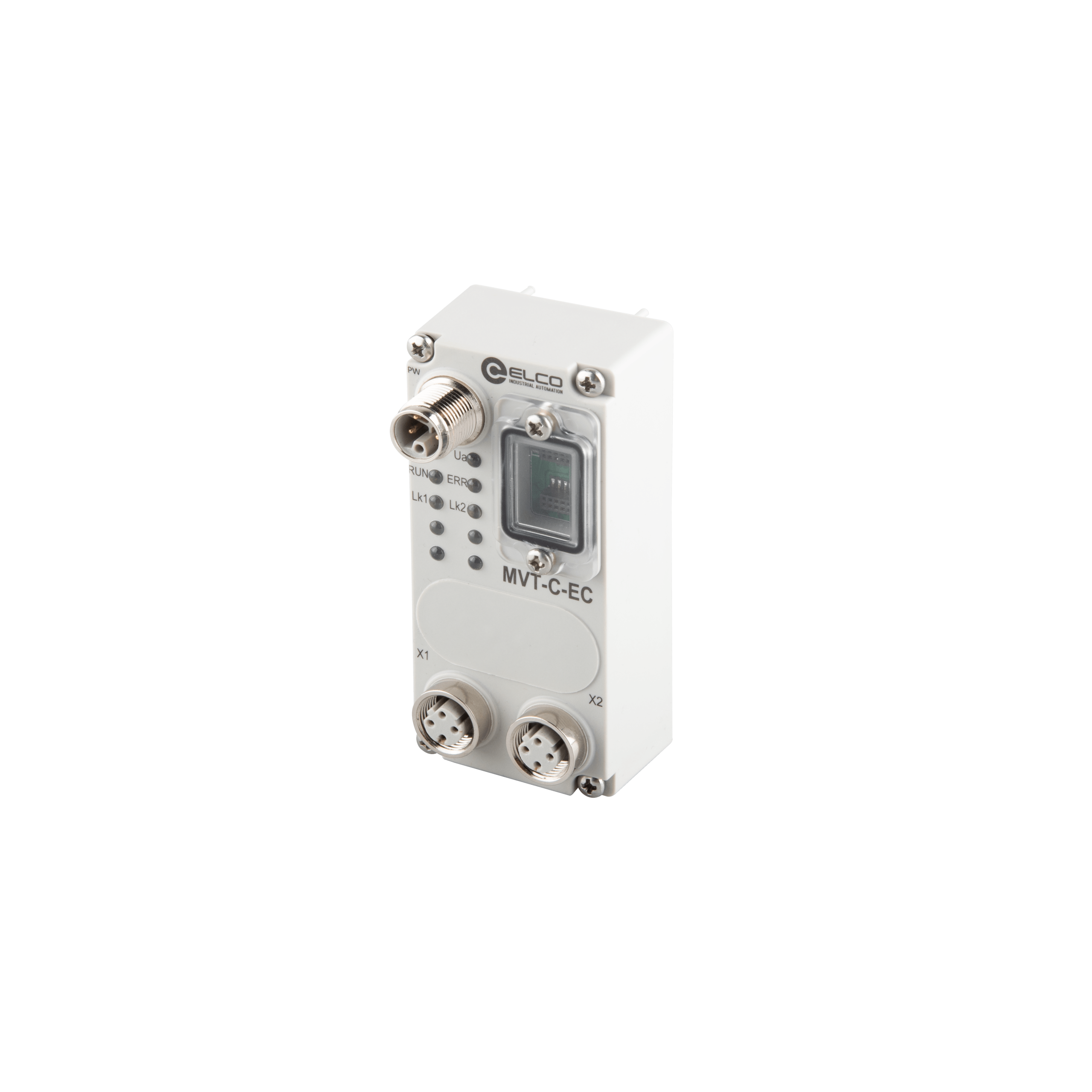

MVT-C-EC Pneumatic Interface
Pneumatic Interface, Ethercat Protocol for Pneumatic Manifold, 48 Outputs, M12 Connector, L-CODE power interface, 5-pole, Male, Two D-CODE bus interfaces, 4-pole, Female.
In Stock
$282.45
per unit
Applications: Motion Control
Technical Data
| Communication protocol | EtherCAT |
| Certificate | CE |
| Supply voltage | 24 V |
| IP rating | IP67 |
| Max. number of solenoids | 48 |
| Power connection | 1 X M12, L-CODE, 5-pin, Male |
| Matching valve terminal series | FESTO VTUG, ELCO MVTG, ELCO MVTE |
| Max. number of valve positions | 24 |
| Ambient temperature | -5 … +60 ℃ |
| Storage temperature | -20 … +70 ℃ |
