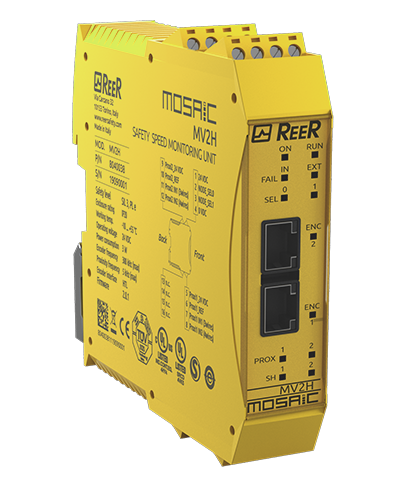

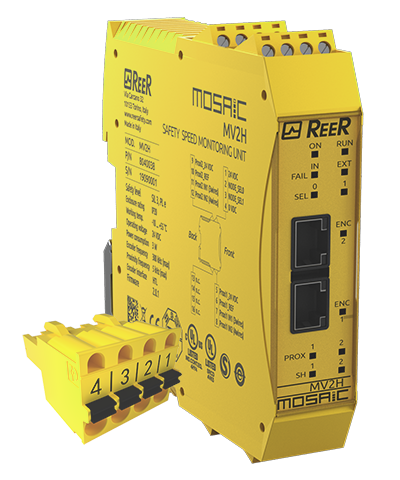

MOSAIC MV2HC
Speed Monitoring Expansion Unit, 2 inputs for HTL encoders, Clamp terminal blocks
In Stock
$604.49
per unit
Applications: HMI & Controls, Safety Systems
Description
Safety Speed Monitoring (up to PL e) for: zero speed control, max. speed, speed range and direction control
RJ-45 connectors for encoders and terminal blocks for proximity switches
Max. input frequency for encoders: up to 500 KHz (300 KHz for HTL encoder)
Max. input frequency for proximity switches: up to 5 KHz
Includes two configurable logical outputs and is therefore able to control up to two independent axis (configurable via MSD)
Technical Data
Features
| Safety level | PL e |
| Safety inputs | 4 digital inputs |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 10 … 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the: proximity/encoder inputs and speed of the controlled axis (within the range, stand still, overspeed) condition |
| Connections | Removable terminal blocks, clamp contacts |
| MTTFD (ISO13849) years | 30 … 100 |
| PFHD (IEC 61508) | 8,92E-09 |
| Storage temperature (°C) | -20 … 85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Proximity type | PNP/NPN – 3/4 wires |
| Proximity connections | Terminal blocks |
| Max. number of proximity | 2 |
| Max. number of encoders | 2 |
| Max. number of axes | 2 |
| Encoder connections | RJ45 |
| Encoder Interface | HTL |
| Packaging dimensions HxLxW (mm) | 36 x 128 x 118 |
| Product class | B |
| Custom tariff | 8537109199 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
| Max. proximity frequency (KHz) | 5 |
| Max. encoder frequency (KHz) | 300 |
Mechanical data
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing – IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
