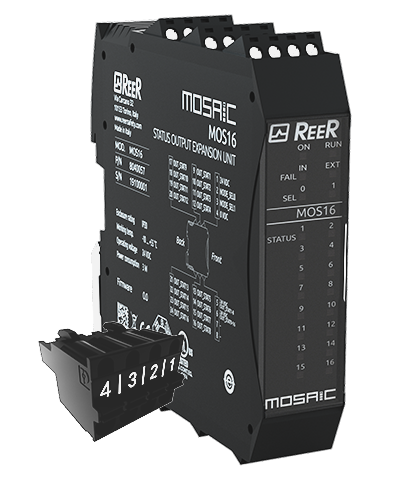

MOSAIC MOS16C
Expansion Unit, 16 Status Outputs, Clamp terminal blocks
In Stock
$308.06
per unit
Applications: HMI & Controls, Safety Systems
Description
Modules for automation process where status outputs are required. With these expension units, the Mosaic safety controller can be used also as a PLC for process control
Technical Data
Features
| Safety level | PL c |
| Safety level (SIL / PL) | SIL 1 – SILCL 1 – PL c |
| Operating temperature (°C) | – 10 … 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the inputs condition |
| Connections | Removable terminal blocks, clamp contacts |
| MTTFD (ISO13849) years | 30 … 100 |
| PFHD (IEC 61508) | 6,61E-09 |
| Status outputs | 16 PNP (100 mA) |
| Storage temperature (°C) | -20 … 85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Packaging dimensions HxLxW (mm) | 36 x 128 x 118 |
| Product class | B |
| Custom tariff | 8537109199 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing – IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
