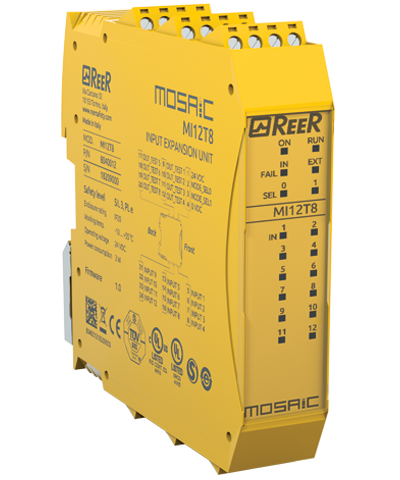

MOSAIC MI12T8C
Expansion Unit, 12 Inputs, 8 Test outputs, Clamp terminal blocks
In Stock
$385.10
per unit
Applications: HMI & Controls, Safety Systems
Description
With 8 test outputs can manage up to 4 independent safety mats or edges. Test output signals are used to monitor overloads and short circuits on input lines
Technical Data
Features
| Safety level | PL e |
| Safety inputs | 12 digital inputs |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 10 … 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the inputs condition |

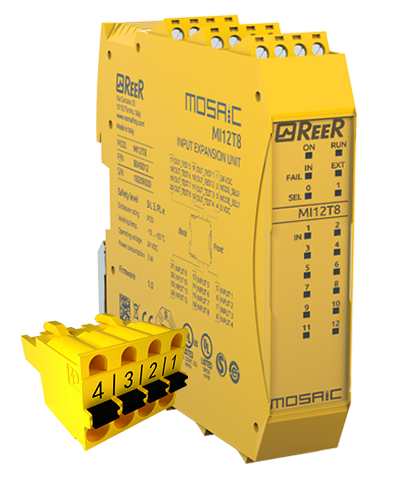

| Connections | Removable terminal blocks, clamp contacts |
| MTTFD (ISO13849) years | 30 … 100 |
| PFHD (IEC 61508) | 5,56E-09 |
| Test outputs | 8 |
| Storage temperature (°C) | -20 … 85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Packaging dimensions HxLxW (mm) | 36 x 128 x 118 |
| Product class | B |
| Custom tariff | 8537109199 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing – IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
