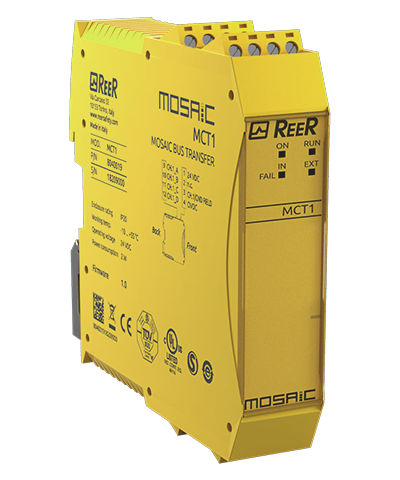

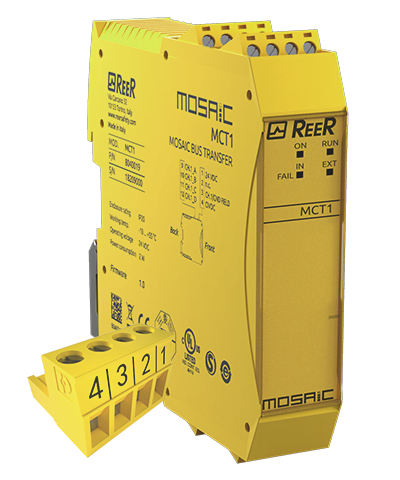

MOSAIC MCT1
Interface Unit, 1-line bus transfer, Screw terminal blocks
In Stock
$266.02
per unit
Applications: HMI & Controls, Safety Systems
Description
Ideal for the interconnection of safety functions of multiple machineries on a single Master Unit
Technical Data
Features
| Safety level | PL e |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 10 … 55 |
| Max. length of the connection cables (m) | <50m (each section) |
| Signalling | LEDs indication for operating status and fault diagnosis |
| Connections | MSC 5-pole rear connector – Removable terminal blocks, screw contacts |
| Storage temperature (°C) | -20 … +85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Relative humidity | 10% … 95% |
| Modules connections | Max. 6 |
| Connection channels | 1 |
| Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
| Product class | A |
| Custom tariff | 85371091 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing – IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
