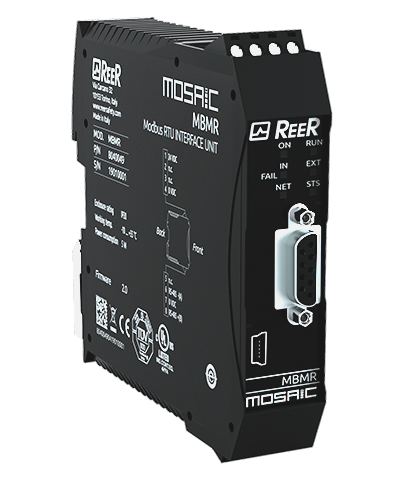

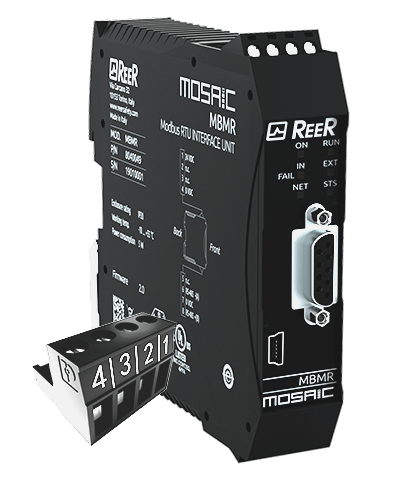

MOSAIC MBMR
Interface Unit, MODBUS RTU, Screw terminal blocks
In Stock
$607.55
per unit
Applications: HMI & Controls, Safety Systems
Description
Expansion unit for connection to the most common industrial Field-Bus systems for diagnostics and data communication
Technical Data
Features
| Operating temperature (°C) | – 10 … 55 |
| Signalling | LEDs indication for operating status and fault diagnosis |
| Connections | Removable terminal blocks, screw contacts – ModBus RTU protocol connector |
| Storage temperature (°C) | -20 … +85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| USB input | Yes |
| Fieldbus interfaces | ModBus RTU |
| Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
| Product class | A |
| Custom tariff | 85371091 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing – IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
