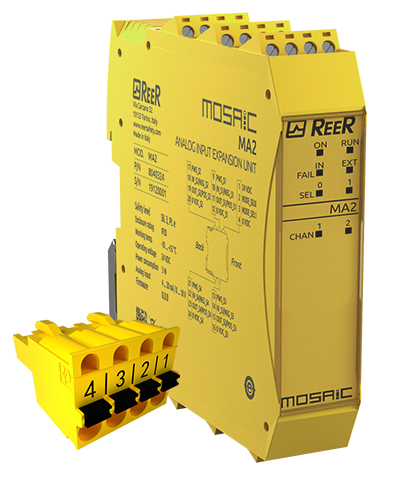

MOSAIC MA2C
Expansion Unit, 2 Analogue Inputs, Clamp terminal blocks
In Stock
$642.26
per unit
Applications: HMI & Controls, Safety Systems
Description
For any application requiring to safely manage analogic sensors such as loading cells, pressure switches, temperature measurements, flow and level measurements, etc.
Works with Mosaic M1S and Mosaic M1S COM Main Units only
Technical Data
Features
| Safety level | PL e |
| Safety inputs | 2 analogue inputs |
| Safety level (SIL / PL) | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | – 10 … 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the analog inputs condition |
| Connections | Removable terminal blocks, clamp contacts |
| MTTFD (ISO13849) years | 30 … 100 |
| PFHD (IEC 61508) | 9,54E-09 |
| Storage temperature (°C) | -20 … 85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Detection | Resolution 16 bit with sampling per second from 2,5 SPs to 4000 SPS. Each channel can supply 24 VDC up to 30 mA |
| Packaging dimensions HxLxW (mm) | 36 x 128 x 118 |
| Product class | B |
| Custom tariff | 8537109199 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing – IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
