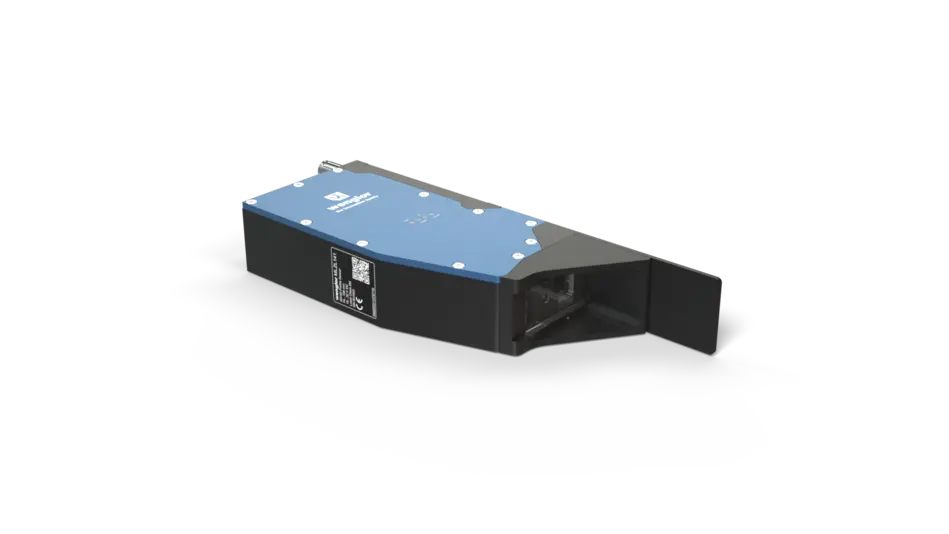

MLZL141 2D/3D Profile Sensor
2D/3D Profile Sensor
In Stock
$38,438.31
per unit
Applications: Machine Vision
Description
Fully automated welding places great demands on quality and precision. Consequently, the correct position of the respective seam must be reliably detected before the welding process is started in the robot cell. Welding systems are equipped with innovative weCat3D 2D/3D profile sensors for the purpose of weld seam tracking.
Features at a Glance
- Easy integration
- High profile quality for high process reliability
- Integrated cooling/rinsing
- Compact and robust format (IP67)
- Optional integrated data evaluation for tracking point determination
Technical Data
Optical Data
| Working range Z | 74 … 158 mm |
| Measuring range Z | 84 mm |
| Measuring range X | 38 … 62 mm |
| Linearity Deviation | 65 µm |
| Resolution Z | 8.3 … 32.5 µm |
| Resolution X | 32 … 64 µm |
| Light Source | Laser (red) |
| Wavelength | 690 nm |
| Laser Class (EN 60825-1) | 3R |
Environmental conditions
| Temperature Range | 0 … 45 °C |
| Storage temperature | -20 … 70 °C |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 6 g (10…55 Hz) |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | 300 mA |
| Measuring Rate | 200 … 4,000 /s |
| Subsampling | 800 … 4,000 /s |
| Inputs/Outputs | 4 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | Ethernet TCP/IP |
| Transmission rate | 100/1000 Mbit/s |
| Protection Class | III |
| FDA Accession Number | 2210379-000 |
Mechanical Data
| Setting Method | Web server |
| Housing Material | Aluminum, anodised |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 12-pin |
| Type of Connection Ethernet | M12 × 1; 8-pin, X-cod. |
| Optic Cover | Plastic, PMMA |
| Weight | 574 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 186.11 a |
General Data
| Scope of delivery | ZLSE010 |
Output
| Configurable as PNP/NPN/Push-Pull | yes |
| Switchable to NC/NO | yes |
| Push-Pull | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
4a = User LED
68 = Power LED 78 = Module status 85 = Link/Act LED |
