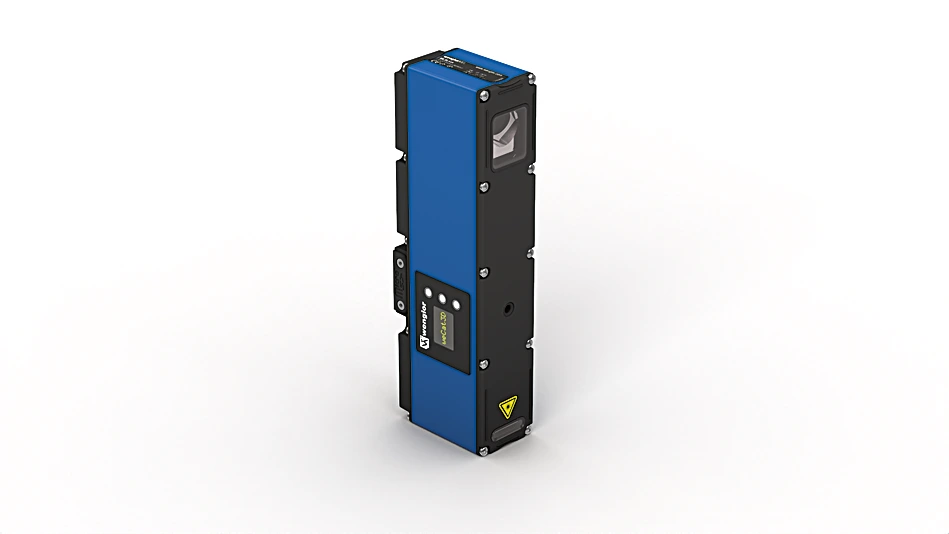

MLSL275S40 2D/3D Profile Sensor
2D/3D Profile Sensor
In Stock
$25,263.69
per unit
Applications: Machine Vision
Description
2D/3D Profile Sensors project a laser line onto the object to be detected and generate an accurate, linearized height profile with an internal camera which is set up at a triangulation angle. Thanks to its uniform, open interface, the weCat3D series can be incorporated by means of the DLL program library or the GigE Vision standard without an additional control unit. Alternatively, wenglor offers its own software packages for implementing your application.
Features at a Glance
- Compact, lightweight design – even suitable for robot applications
- Up to 4,000 profiles/s with up to 1,280 points/profile
- Complies with EN ISO 13849-1:2016
- Safe laser shutdown in accordance with the Machinery Directive
Technical Data
Optical Data
| Working range Z | 280 … 1,280 mm |
| Measuring range Z | 1,000 mm |
| Measuring range X | 200 … 850 mm |
| Linearity Deviation | 500 µm |
| Resolution Z | 40 … 570 µm |
| Resolution X | 190 … 760 µm |
| Light Source | Laser (blue) |
| Wavelength | 450 nm |
| Laser Class (EN 60825-1) | 3B |
Environmental conditions
| Temperature Range | 0 … 45 °C |
| Storage temperature | -20 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 6 g (10…55 Hz) |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | 800 mA |
| Measuring Rate | 200 … 4,000 /s |
| Subsampling | 800 … 4,000 /s |
| Inputs/Outputs | 4 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | Ethernet TCP/IP |
| Transmission rate | 100/1000 Mbit/s |
| Protection Class | III |
| FDA Accession Number | 1710966-000 |
Mechanical Data
| Setting Method | Web server |
| Housing Material | Aluminum, powder-coated Plastic, ABS |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 12-pin |
| Type of Connection Ethernet | M12 × 1; 8-pin, X-cod. |
| Connection: external 24 V laser circuit | M12 × 1; 8-pin |
| Optic Cover | Plastic, PMMA |
| Weight | 839 g |
Safety-relevant Data
| Performance Level (EN ISO 13849-1) | Cat. 4 PL e |
Output
| Push-Pull | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
20 = Enter key
22 = Up key 23 = Down key 60 = display 4a = User LED 68 = Power LED 78 = Module status 85 = Link/Act LED 7a = Laser (MLSL2 with laser class 3R and 3B only) |
