Description

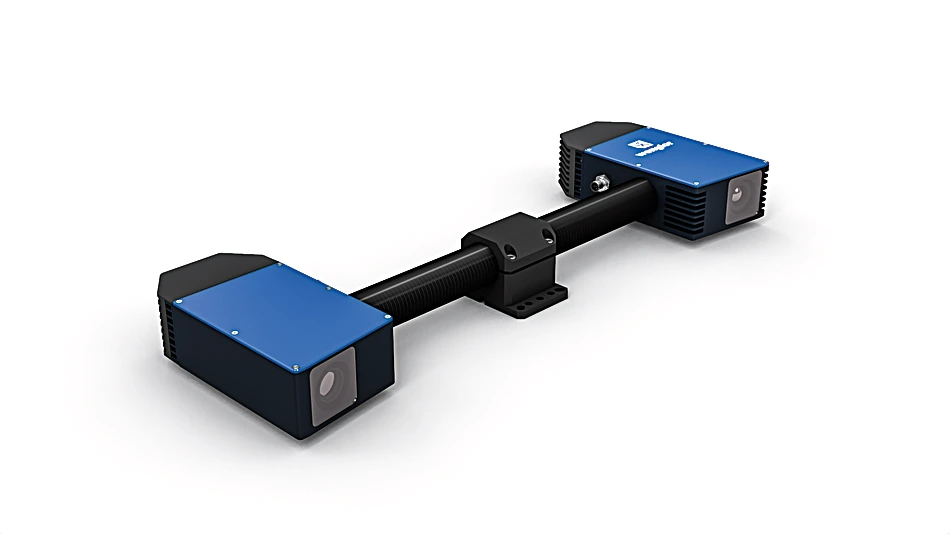

The three variants of the ShapeDrive MLBS series are optimally designed for crates and pallets with their symmetrical design and large measuring volumes. The robust design makes the MLBS sensors suitable for use in industrial environments. With its fast Ethernet interface and three measuring ranges, ShapeDrive G4 is distinguished by great diversity and high speed.
Features at a Glance
- 5 MP resolution
- Easy integration via SDK or GigE Vision
- High point cloud quality with up to four 3D point clouds per second
- Integrated 3D point cloud calculation
Technical Data
Optical Data
| Working range Z | 1,750 … 2,750 mm |
| Measuring range Z | 1,000 mm |
| Measuring range X | 1,300 mm |
| Measuring range Y | 1,000 mm |
| Resolution Z | 61 … 151 µm |
| Resolution X/Y | 605 … 950 µm |
| Camera Resolution | 5 MP |
| Light Source | LED (blue) |
| Wavelength | 457 nm |
| Service Life (T = +25 °C) | 20,000 h |
| Risk Group (EN 62471) | 2 |
Environmental conditions
| Temperature Range | 0 … 40 °C |
| Storage temperature | -5 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Atmospheric humidity | 5…95%, non-condensing |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Max. Current Consumption (Ub = 24 V) | 3.5 A |
| Acquisition time | 0.22 … 0.5 s |
| Inputs/Outputs | 4 |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Interface | Ethernet TCP/IP |
| Protection Class | III |
Mechanical Data
| Setting Method | Web server |
| Housing Material | Aluminum, anodised Plastic, ABS |
| Degree of Protection | IP67 |
| Type of Connection Power | M12 × 1; 5-pin |
| Type of connection digital I/O ports | M12 × 1; 12-pin |
| Type of Connection Ethernet | M12 × 1; 8-pin, X-cod. |
| Optic Cover | Plastic, PMMA |
| Weight | 3,594 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 71.32 a |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
78 = Module status
85 = Link/Act LED 4a = User LED 68 = Power LED |
