Description

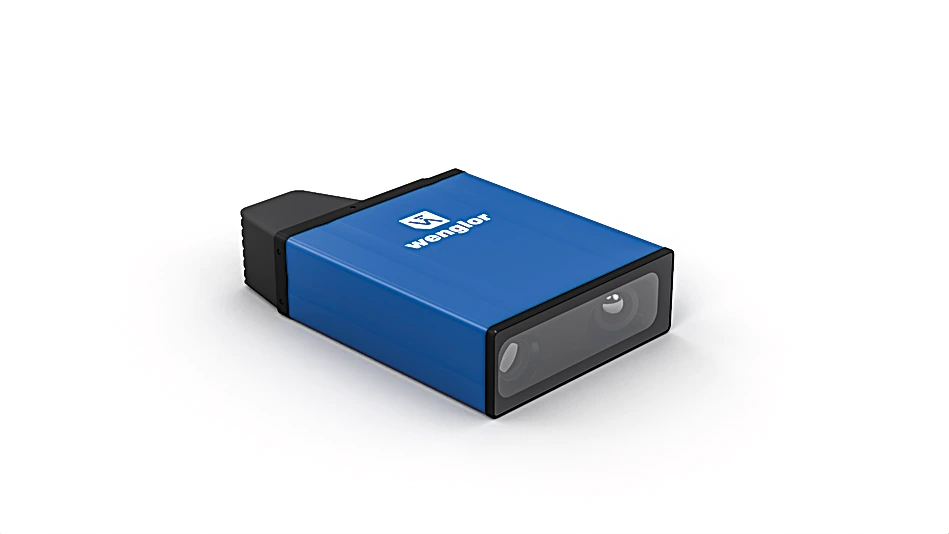

ShapeDrive MLAS 3D sensors are distinguished by high precision for minimal measuring volumes. The six variants included in the ShapeDrive MLAS series are available in two performance classes with camera resolutions of 5 and 12 megapixels. The robust design makes the MLAS sensors suitable for use in industrial environments. With its fast Ethernet interface and three measuring ranges in each performance class, ShapeDrive G4 is distinguished by great diversity and high speed.
Features at a Glance
- Easy integration via SDK or GigE Vision
- High point cloud quality with up to four 3D point clouds per second
- Integrated 3D point cloud calculation
- 12 MP resolution
Technical Data
Optical Data
| Working range Z | 220 … 320 mm |
| Measuring range Z | 100 mm |
| Measuring range X | 120 mm |
| Measuring range Y | 80 mm |
| Resolution Z | 2 … 5 µm |
| Resolution X/Y | 30 … 44 µm |
| Camera Resolution | 12.3 MP |
| Light Source | LED (blue) |
| Wavelength | 457 nm |
| Service Life (T = +25 °C) | 20,000 h |
| Risk Group (EN 62471) | 2 |
Environmental conditions
| Temperature Range | 0 … 40 °C |
| Storage temperature | -5 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Atmospheric humidity | 5…95%, non-condensing |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Max. Current Consumption (Ub = 24 V) | 2.5 A |
| Acquisition time | 0.4 … 0.9 s |
| Inputs/Outputs | 4 |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Interface | Ethernet TCP/IP |
| Protection Class | III |
Mechanical Data
| Setting Method | Web server |
| Housing Material | Aluminum, anodised Aluminum, powder-coated Plastic, PA6 |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 12-pin |
| Type of Connection Ethernet | M12 × 1; 8-pin, X-cod. |
| Optic Cover | Plastic, PMMA |
| Weight | 1,973 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 71.35 a |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
78 = Module status
85 = Link/Act LED 4a = User LED 68 = Power LED |
