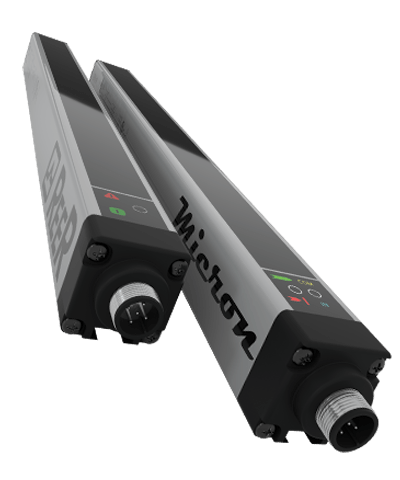

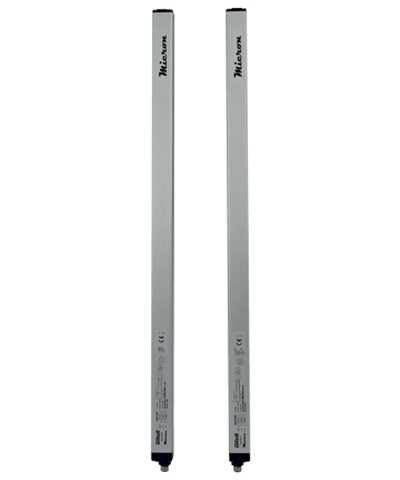

MICRON MI 1807 C
2 antivalent outputs
In Stock
$1,445.13
per unit
Applications: Weighing & Measurement
Description
2 Antivalent Outputs
Push-Pull outputs can operate both in PNP and NPN mode. At the power-on the barrier recognizes the type of connection of the load and operates accordingly
Max. length connection cables between light curtain and interface: 100 m
Technical Data
Features
| Controlled height (mm) | 1725 |
| Max. range (m) | 18 |
| Operating temperature (°C) | – 10 … 55 |
| Number of beams | 24 |
| Signalling | LEDs for light curtain’s status and diagnostics |
| Connections | M12 5-pole connectors (emitter and receiver) |
| Outputs | 2 solid state 0 or 24V antivalent digital outputs (PNP 100 mA at 24 VDC) |
| Packaging dimensions HxLxW (mm) | 105 x 1940 x 160 |
| Product class | C |
| Custom tariff | 85365019 |
| Outputs type | 2 antivalent solid state digital outputs |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Beam spacing (mm) | 75 |
| Overall height (mm) | 1863 |
| Cross section dimensions (mm) | 28 x 30 |
| Degree of protection | IP65 – IP67 |
| Fastening | Back slot with set of LE type brackets (included) or to the top and lower end with swivel brackets SFB E (optional) |
