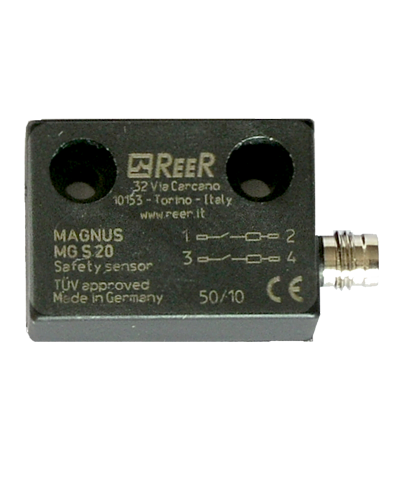

MAGNUS MG S 20
Magnetic switch, Small, 2NO, M8 connector, Interaxis 22 mm
In Stock
$61.64
per unit
Applications: Safety Systems
Description
Magnetic Safety Switch. Sensor Only. 2 NO contacts. M8 connector. Interaxis 22 mm
Technical Data
Features
| Operating temperature (°C) | – 25 … 75 |
| Sensor type | Magnetic switches |
| Connections | M8 4-pole connector |
| Product class | C |
| Custom tariff | 9032890090 |
| Connection type | Connector |
Mechanical data
| Dimensions HxWxD (mm) | 36 x 26 x 13 |
| Degree of protection | IP67 |
| Fastening | M4 screws with flat head (e.g. M4 cheese head screws ISO 4762) |
| Contacts | 2 NO contacts |
| Housing | Thermoplastic enclosure (PBT) |
| Switching distance (mm) | 3 … 10 |
| Size | 22 mm interaxis |
