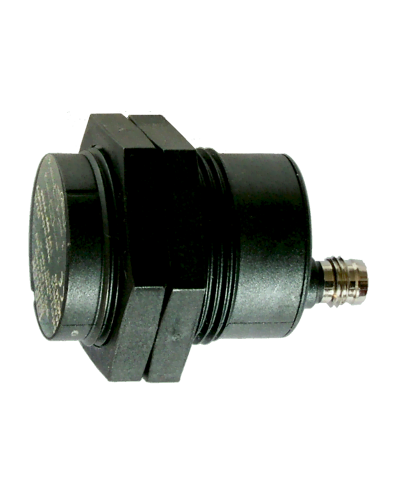

MAGNUS MG M 20
Magnetic switch, Round, 2NO, M8 connector, Diameter M30
In Stock
$57.80
per unit
Applications: Safety Systems
Description
Magnetic Safety Switch. Sensor Only. Round. 2 NO contacts. M8 connector. Diameter M30
Technical Data
Features
| Operating temperature (°C) | – 25 … 75 |
| Sensor type | Magnetic switches |
| Connections | M8 4-pole connector |
| Product class | C |
| Custom tariff | 9032890090 |
| Connection type | Connector |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Degree of protection | IP67 |
| Fastening | 2 M30 fixing nuts |
| Contacts | 2 NO contacts |
| Housing | Thermoplastic enclosure (PBT) |
| Switching distance (mm) | 4 … 16 / 7 … 20 (with MG M M+) |
| Size | Cylindrical M30 |
