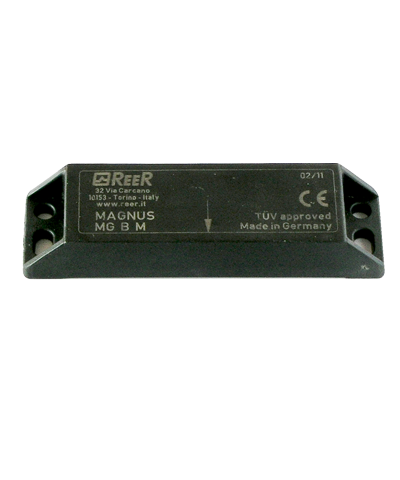

MAGNUS MG B M
Magnetic switch, Big, Magnet , Interaxis 78 mm
In Stock
$16.72
per unit
Applications: Safety Systems
Description
Magnetic Safety Switch. Actuator Magnet. Interaxis 78 mm
Technical Data
Features
| Operating temperature (°C) | – 25 … 75 |
| Sensor type | Magnetic switches |
| Product class | C |
| Custom tariff | 9032890090 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Dimensions HxWxD (mm) | 88 x 25 x 14 |
| Degree of protection | IP67 |
| Fastening | M4 screws with flat head (e.g. M4 cheese head screws ISO 4762) |
| Housing | Thermoplastic enclosure (PBT) |
| Switching distance (mm) | 4 … 16 |
| Size | 78 mm interaxis |
