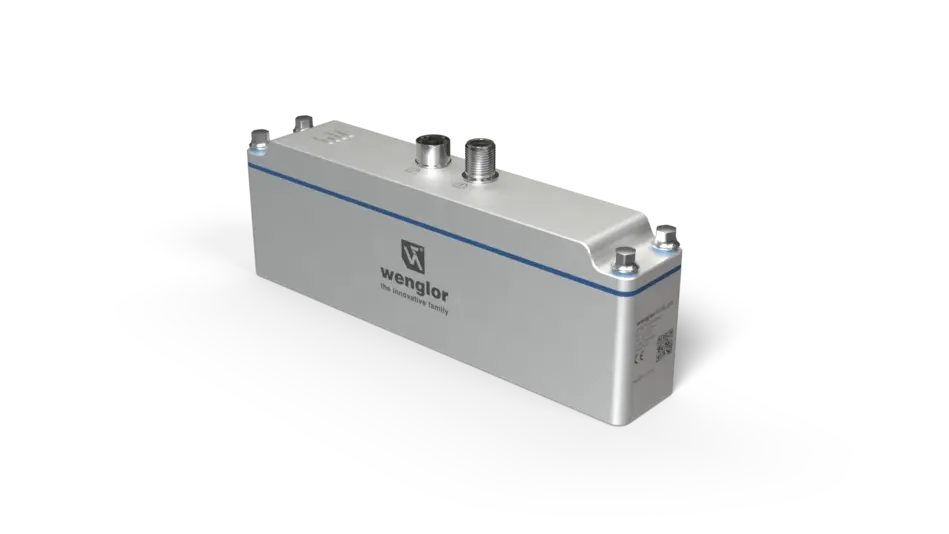

M2SL226 2D/3D Profile Sensor
2D/3D Profile Sensor
In Stock
$24,074.31
per unit
Applications: Machine Vision
Description
2D/3D Profile Sensors project a laser line onto the object to be detected and generate an accurate, linearized height profile with an internal camera which is set up at a triangulation angle. Thanks to its uniform, open interface, the weCat3D series can be incorporated by means of the DLL program library or the GigE Vision standard without an additional control unit. Alternatively, wenglor offers its own software packages for implementing your application.
Features at a Glance
- Precise measuring range resolution X (> 1200 measuring points)
- Ecolab
- Stainless steel housing 1.4404
- IP67 / IP69K
Technical Data
Optical Data
| Working range Z | 300 … 1,500 mm |
| Measuring range Z | 1,200 mm |
| Measuring range X | 250 … 1,350 mm |
| Linearity Deviation | 600 µm |
| Resolution Z | 60 … 990 µm |
| Resolution X | 270 … 1,170 µm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Laser Class (EN 60825-1) | 2 |
Environmental conditions
| Temperature Range | 0 … 45 °C |
| Storage temperature | -20 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Shock resistance per DIN IEC 68-2-27 | 30 g / 11 ms |
| Vibration resistance per DIN IEC 60068-2-6 | 6 g (10…55 Hz) |
| Atmospheric humidity | 5…95%, non-condensing |
Electrical Data
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | 1,000 mA |
| Measuring Rate | 200 … 4,000 /s |
| Subsampling | 800 … 4,000 /s |
| Inputs/Outputs | 4 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | Ethernet TCP/IP |
| Transmission rate | 100/1000 Mbit/s |
| Protection Class | III |
| FDA Accession Number | 1710959-001 |
Mechanical Data
| Setting Method | Web server |
| Housing Material | Stainless steel, V4A (1.4404 / 316L) |
| Degree of Protection | IP67 IP69K |
| Connection | M12 × 1; 12-pin |
| Type of Connection Ethernet | M12 × 1; 8-pin, X-cod. |
| Optic Cover | Plastic, PMMA |
| Weight | 1,800 g |
Output
| Push-Pull | yes |
Adjustable parameters
| Output | Push-pull NPN PNP |
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
4a = User LED
68 = Power LED 78 = Module status 85 = Link/Act LED |
