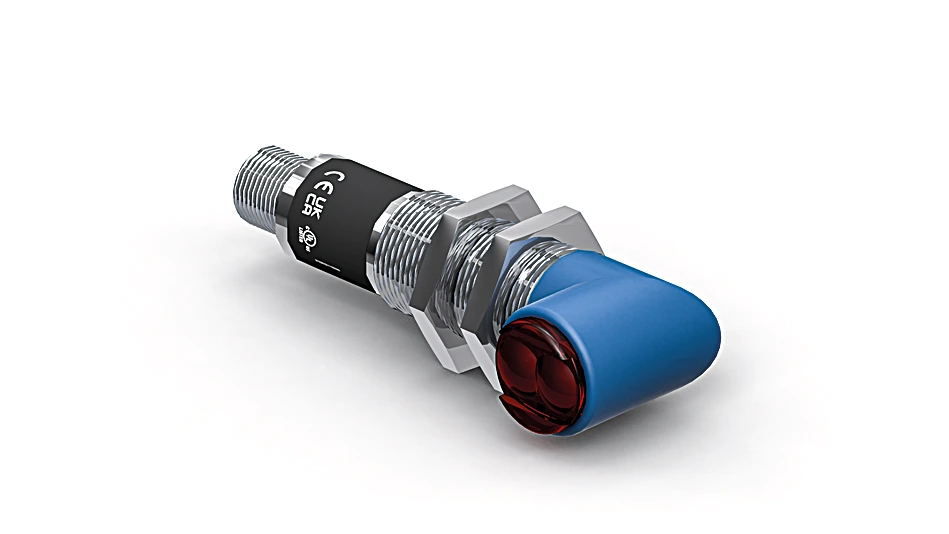

LW86PCV3 Retro-Reflex Sensor Universal
Retro-Reflex Sensor
In Stock
$217.00
per unit
Applications: Sensors & I/O
Description
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
Features at a Glance
- Stainless steel housing
- Switching distance adjuster
Technical Data
Optical Data
| Range | 6,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Switching Hysteresis | < 15 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 5 ° |
| Two-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1 kHz |
| Response Time | 500 µs |
| Temperature Drift | < 10 % |
| Temperature Range | -10 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Setting Method | Potentiometer |
| Housing Material | Stainless steel, V2A (1.4305 / 303) Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 39 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,447.91 a |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E003 hex nut 1 × sensor |
Output
| Contamination Output | yes |
| PNP NO | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
08 = NO/NC Switch
05 = Switching Distance Adjuster 30 = Switching Status/Contamination Warning |
Reflector data
| RQ100BA | 0.02 … 6 m |
| RE18040BA | 0.02 … 3.3 m |
| RQ84BA | 0.01 … 4.5 m |
| RR84BA | 0.02 … 4.5 m |
| RE9538BA | 0.02 … 1.5 m |
| RE6151BM | 0.01 … 4.5 m |
| RE6151BA | 0.02 … 2.3 m |
| RR50_A | 0.02 … 4 m |
| RE6040BA | 0.02 … 4 m |
| RE8222BA | 0.01 … 2 m |
| RR34_M | 0.01 … 2.4 m |
| RE3220BM | 0.01 … 1.6 m |
| RE6210BM | 0.01 … 1.6 m |
| RR25_M | 0.02 … 1.6 m |
| RR25KP | 0.02 … 1.4 m |
| RR21_M | 0.01 … 1.6 m |
| ZRAE02B01 | 0.02 … 3 m |
| ZRME01B01 | 0.02 … 1 m |
| ZRME03B01 | 0.02 … 2.8 m |
| ZRMR02K01 | 0.02 … 1.1 m |
| ZRMS02_01 | 0.01 … 1.5 m |
| RF505 | 0.06 … 1.6 m |
| RF255 | 0.06 … 1.2 m |
| RF508 | 0.06 … 1.6 m |
| RF258 | 0.06 … 1.2 m |
| ZRDF__K01 | 0.06 … 4 m |
