LVM2570 3D Laser profile sensor
Elco Automation | LVM2570

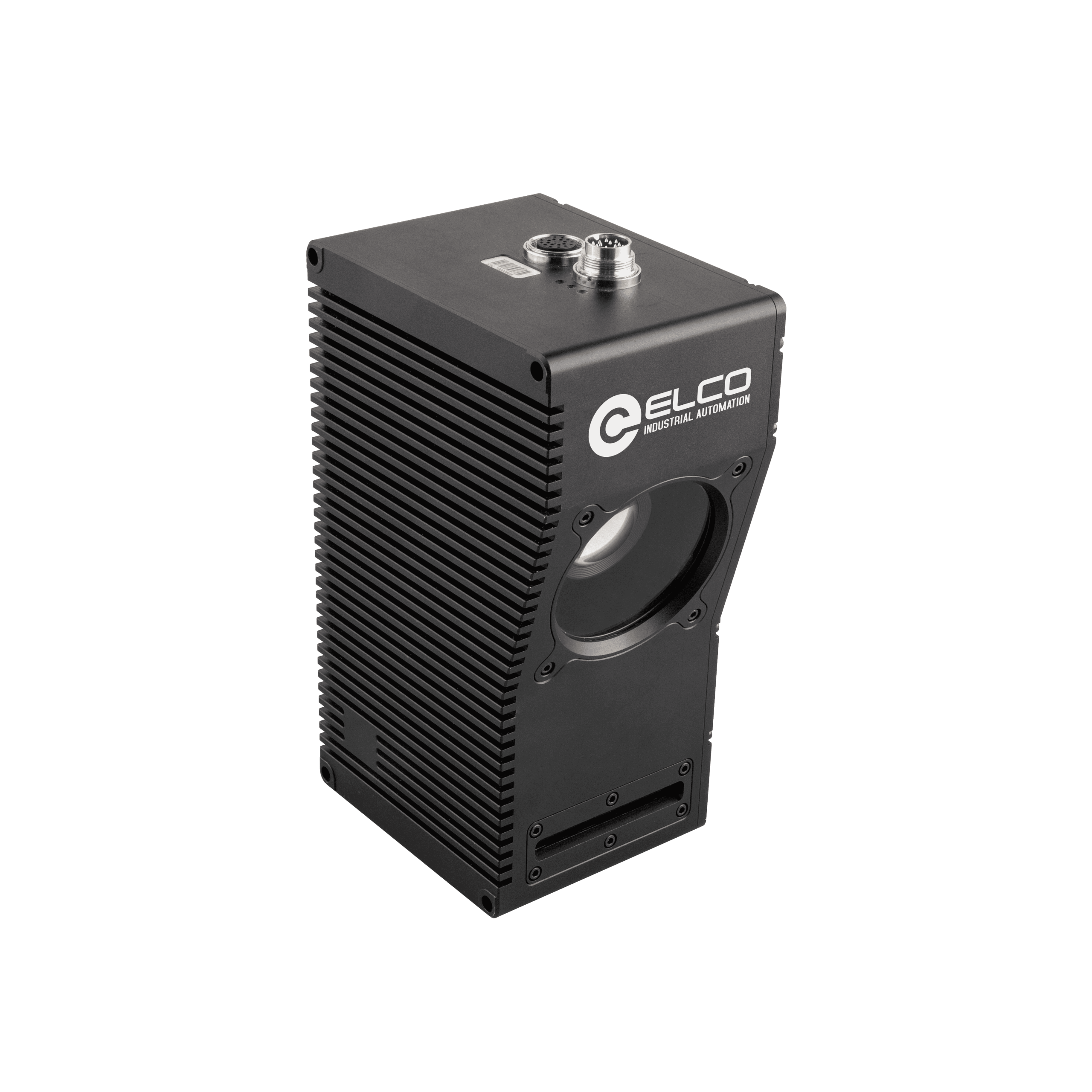

LVM2570 3D Laser profile sensor

3D Laser profile sensor, LVM25 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 206.5 … 663.6 mm, FOV 363.3 … 975.4 mm,Data points 4096, Scan rate 1800 … 37900 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 … 48 VDC, 0…50 °C, IP67

In Stock
$18,087.36 per unit

Applications: Sensors & I/O

Technical Data

Field of view 363.3 … 975.4 mm
Measurement range 457.1 mm
Clearance distance 206.5 mm
Data points 4096
Laser wavelength 405 nm
Communication protocol ModbusTCP, PROFINET, ASCII, EtherNet/IP
Ambient temperature 0 … +50 ℃
Storage temperature -30 … +70 ℃
IP rating IP67
Inputs Time trigger, Differential encoder
Weight 2.58 kg
Scan rate 2000 … 37900 Hz
Ambient light Incandescent lamp: less than 10000 lux
Outputs 2 digital outputs, 1 analog output
Housing material Aluminium alloy
Dimensions 89 × 121 × 1895 mm
Temperature characteristic ±0.01% of MR
Linearity(z axis) ±0.06% of MR
Resolution(x axis) 88.7 … 238.1 μm
Repeatability(z axis) 2.0 μm

Documentation

3D Drawings

  • Icon

    3D Drawing - ELCO_LVM2570.step

    1 file(s) 2.95 MB
    Download

Certificates & Compliance

  • Icon

    CE - CE_CS_LVM2 Series_V1.0.pdf

    1 file(s) 1.00 MB
    Download
  • Icon

    FCC - FCC_CS_LVM2 Series_V1.0.pdf

    1 file(s) 1,020.99 KB
    Download

Datasheets

  • Icon

    Datasheet - ELCO_LVM2570_DataSheet_EN.pdf

    1 file(s) 208.53 KB
    Download
  • Icon

    Datasheet - ELCO_LVM2570_DataSheet_CN.pdf

    1 file(s) 1.13 MB
    Download

Software

  • Icon

    Configuration application - LVM-V2.5.0.14-Setup.zip

    1 file(s) 102.31 MB
    Download

Technical Manuals

  • Icon

    Manual - ELCO_3D sensor_Manual_EN.pdf

    1 file(s) 17.80 MB
    Download
  • Icon

    Manual - ELCO_3D sensor_Manual_CN.pdf

    1 file(s) 8.35 MB
    Download
