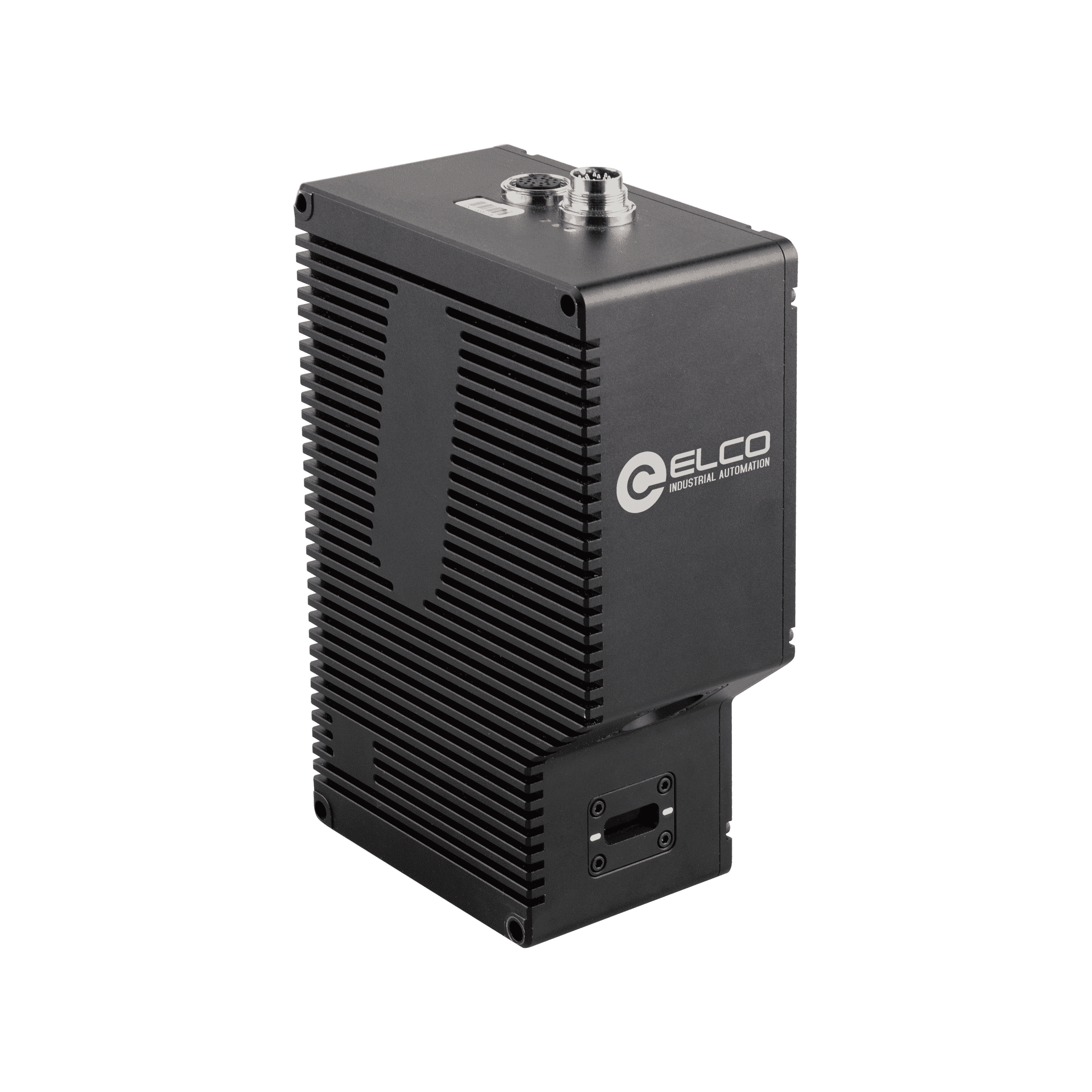

LVM2520 3D Laser profile sensor
3D Laser profile sensor, LVM25 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 16.0 … 20.8 mm, FOV 21.6 … 23.7mm,Data points 4096, Scan rate 1800 … 37900 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 … 48 VDC, 0…50 °C, IP67
In Stock
$18,087.36
per unit
Applications: Sensors & I/O
Technical Data
| Measurement range | 4.8 mm |
| Ambient temperature | 0 … +50 ℃ |
| Temperature characteristic | ±0.01% of MR |
| Ambient light | Incandescent lamp: less than 10000 lux |
| IP rating | IP67 |
| Storage temperature | -30 … +70 ℃ |
| Inputs | Time trigger, Differential encoder |
| Weight | 2.22 kg |
| Repeatability(z axis) | 0.1 μm |
| Scan rate | 2000 … 37900 Hz |
| Laser wavelength | 405 nm |
| Communication protocol | ModbusTCP, PROFINET, ASCII, EtherNet/IP |
| Outputs | 2 digital outputs, 1 analog output |
| Housing material | Aluminium alloy |
| Dimensions | 72 × 122 × 189 mm |
| Resolution(x axis) | 5.3 … 5.8 μm |
| Field of view | 21.6 … 23.7 mm |
| Data points | 4096 |
| Clearance distance | 16 mm |
| Linearity(z axis) | ±0.02% of MR |
