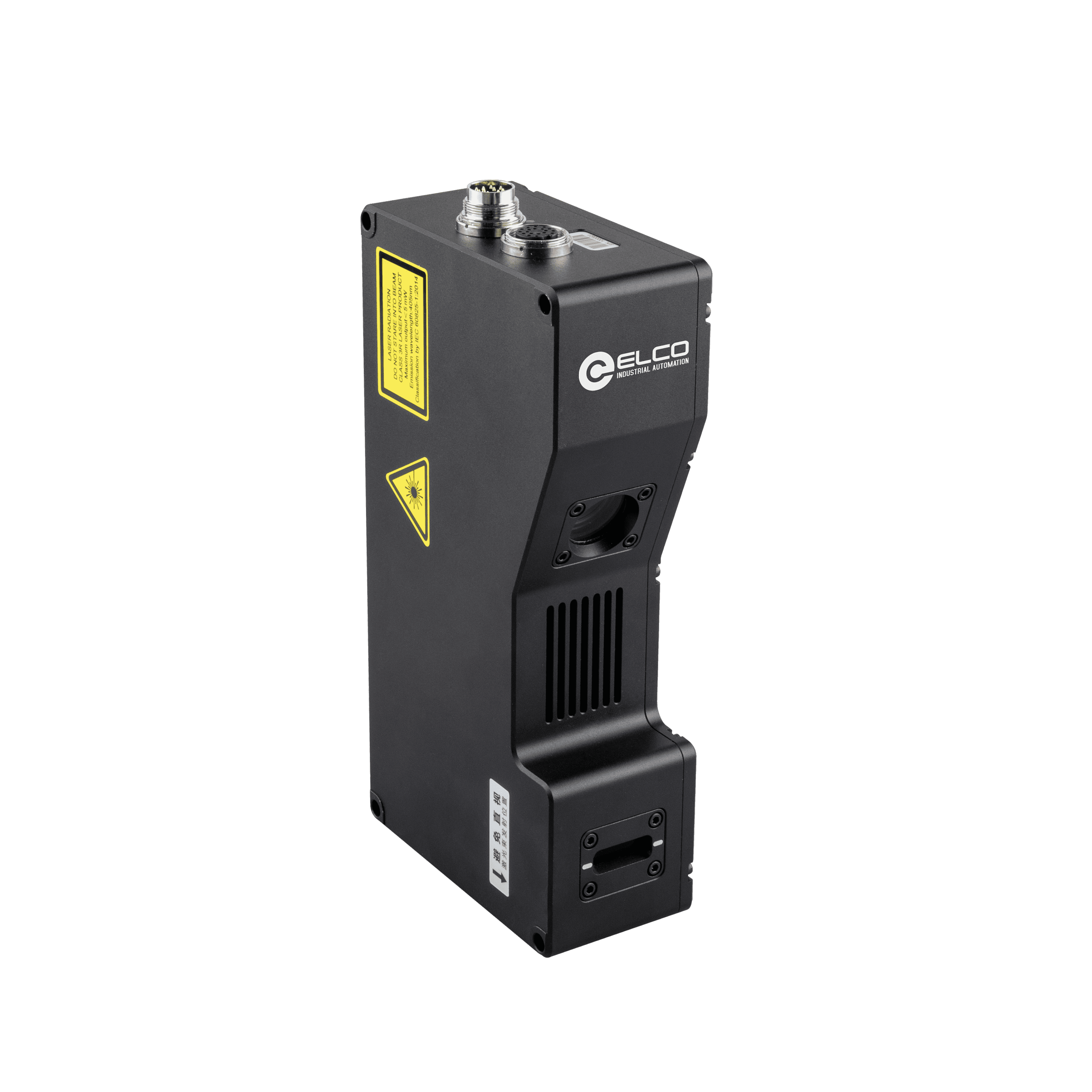

LVM2340-L 3D Laser profile sensor
3D Laser profile sensor, LVM23 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 167 … 359.6 mm, FOV 110.8 … 204.3 mm,Data points 4200, Scan rate 316 … 12000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 … 48 VDC, 0…50 °C, IP67
In Stock
$16,257.78
per unit
Applications: Sensors & I/O
Technical Data
| Ambient temperature | 0 … +50 ℃ |
| Temperature characteristic | ±0.01% of MR |
| Laser wavelength | 405 nm |
| IP rating | IP67 |
| Housing material | Aluminium alloy |
| Storage temperature | -30 … +70 ℃ |
| Inputs | Time trigger, Differential encoder |
| Weight | 1.43 kg |
| Repeatability(z axis) | 1 μm |
| Scan rate | 316 … 12000 Hz |
| Communication protocol | ModbusTCP, PROFINET, ASCII, EtherNet/IP |
| Field of view | 110.8 … 204.3 mm |
| Ambient light | Incandescent lamp: less than 10000 lux |
| Outputs | 2 digital outputs, 1 analog output |
| Dimensions | 53 × 106 × 204 mm |
| Linearity(z axis) | ±0.04% of MR |
| Clearance distance | 167 mm |
| Data points | 4200 |
| Resolution(x axis) | 26.4 … 48.6 μm |
| Measurement range | 192.6 mm |
