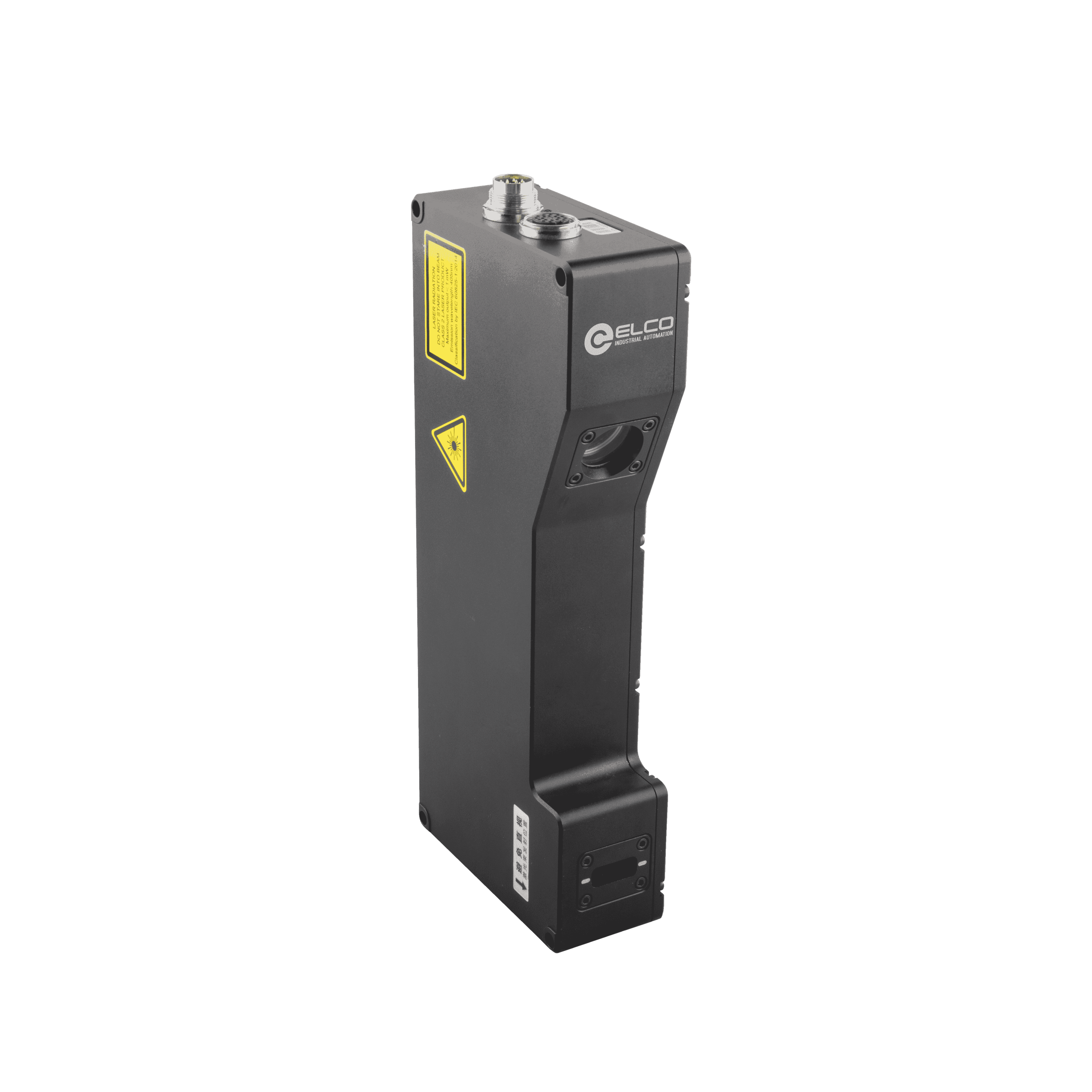

LVM2250 3D Laser profile sensor
3D Laser profile sensor, LVM22 series, Integrated CPU without additional controller, up to 8 Sensor with C800 switch possible, Operating range 274 … 630 mm, FOV 147 … 291 mm,Data points 2048, Scan rate 240 … 5000 Hz, Encoder trigger/2DO/RS485, PROFINET/ModbusTCP, 24 … 48 VDC, 0…50 °C, IP67
In Stock
$14,891.39
per unit
Applications: Sensors & I/O
Technical Data
| Communication protocol | ModbusTCP, PROFINET, ASCII, EtherNet/IP |
| Measurement range | 356 mm |
| Ambient temperature | 0 … +50 ℃ |
| Storage temperature | -30 … +70 ℃ |
| IP rating | IP67 |
| Inputs | Time trigger, Differential encoder |
| Weight | 1.48 kg |
| Repeatability(z axis) | 1.5 μm |
| Scan rate | 240 … 5000 Hz |
| Ambient light | Incandescent lamp: less than 10000 lux |
| Outputs | 2 digital outputs, 1 analog output |
| Housing material | Aluminium alloy |
| Dimensions | 46 × 106 × 250 mm |
| Temperature characteristic | ±0.01% of MR |
| Clearance distance | 274 mm |
| Data points | 2048 |
| Field of view | 147 … 291 mm |
| Resolution(x axis) | 72.0 … 142.3 μm |
| Linearity(z axis) | ±0.01% of MR |
| Laser wavelength | 405 nm |
