Description

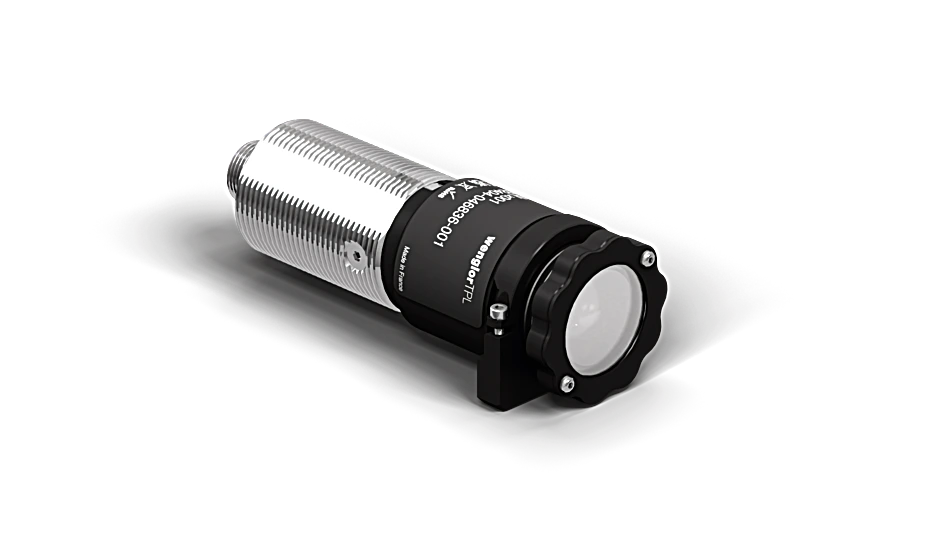

The LSL spotlight has a built-in, lockable zoom lens that provides an exceptional range of visual field, working distance and brightness variability. The illumination can be operated in continuous mode or synchronized with the camera in OverDrive strobe mode.
Features at a Glance
- Continuous mode or strobe mode synchronized with the camera
- Homogeneous illumination of small areas
- Compact M30 standard design with IP67 degree of protection and zoom lens
Technical Data
Optical Data
| Light Source | Infrared Light |
| Wavelength | 850 nm |
| Risk Group (EN 62471) | 2 |
| Aperture angle | 4 … 26 ° |
| Infrared light output | 1,412 W/m² |
| Measuring point distance | 100 mm |
Environmental conditions
| Temperature Range | -10 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | 0.55 A |
| Current Consumption Continuous Mode (Ub = 24 V) | 0.2 A |
| Flash duration (max.) | 10 ms |
| Duty cycle (max.) | < 0,2 |
| Dimming | 0…10 V ≙ 100…30% |
| OverDrive | yes |
| Rise time | 4 µs |
| Fall time | 25 µs |
| Input signal | PNP/NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Aluminum, anodised Glass Plastic, PMMA |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 5-pin |
| Weight | 115 g |
