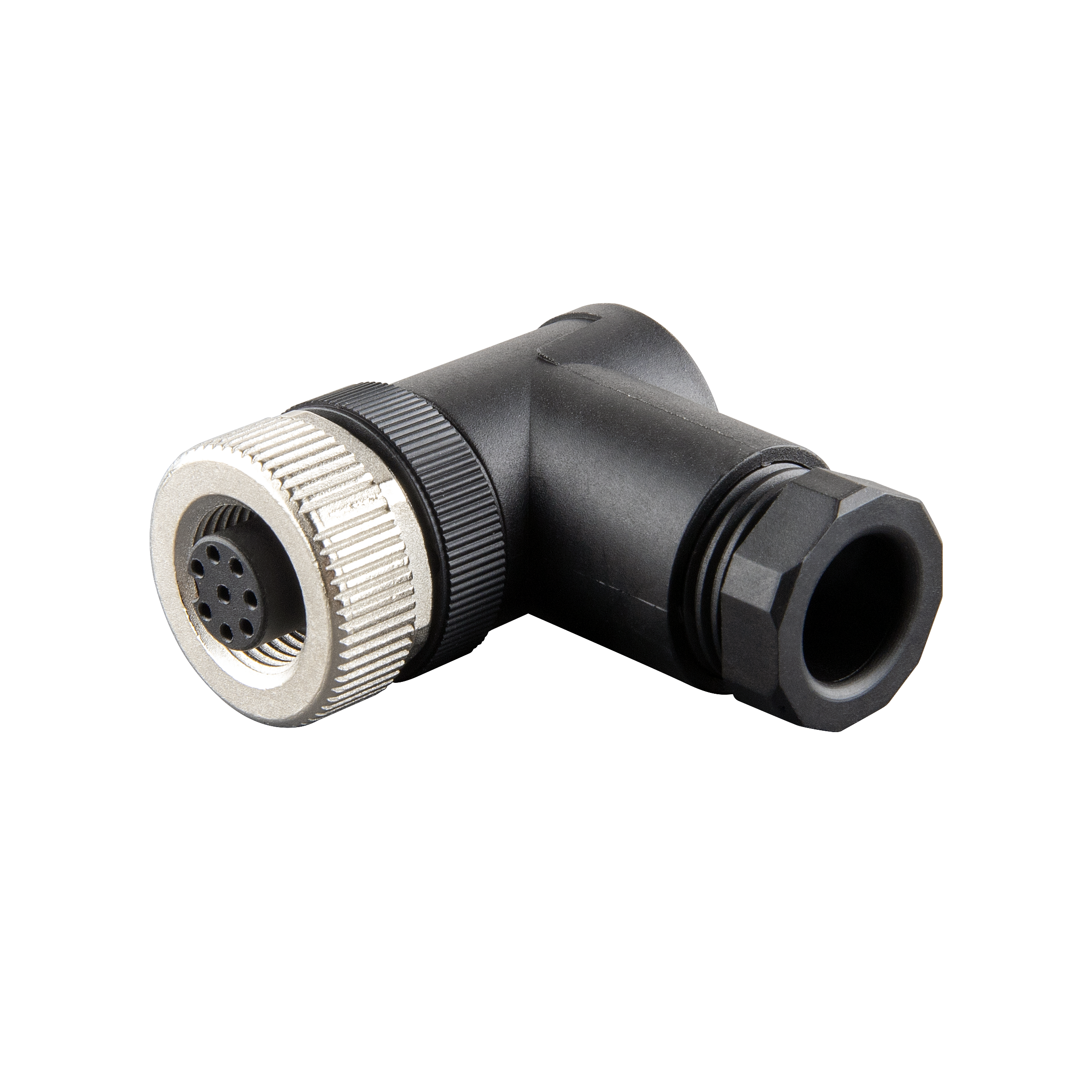

LSBO12.8-0/C(BU) Field-attachable Sensor-Actuator Connector
Field-attachable Sensor-Actuator Connector, M12, A-code 8-pole, Angled Female, Screw Terminals Clamping, Range 4…6 mm
In Stock
$20.70
per unit
Applications: Sensors & I/O
Technical Data
| Shape | Angled |
| Gender | Female |
| Shielded/Unshielded | No |
| Rated current | 2 A |
| Rated voltage | 30 V AC/DC |
| Housing material | Nylon |
| Cable diameter | 4…6 mm |
| IP rating | IP67 |
| Coding | A-code |
| Type | M12 |
| Number of contacts | 8-pin |
| Product type | Field-attachable Sensor-Actuator Connector |
| Termination type | Screw connection |
