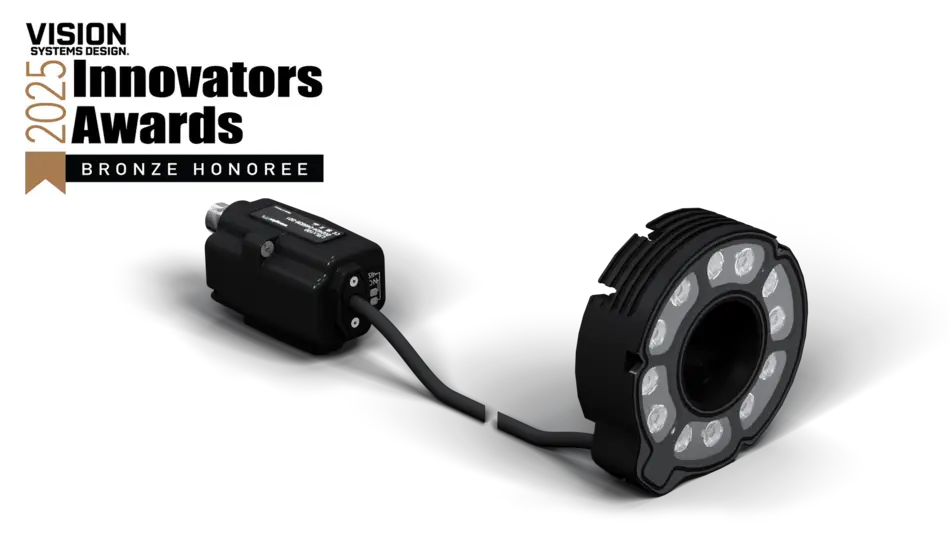

LRLR100 Ring Light red light, 37 mm
Ring Light
In Stock
$1,129.69
per unit
Applications: Machine Vision
Description
wenglor LRLx100 ring lights are compact and bright ring lights with two operating modes: Continuous mode and strobe OverDrive. The robust IP67 housing is equipped with magnets and fixing points for mounting angle changers, providing unparalleled flexibility in ring light illumination.
Features at a Glance
- Flexibility: expand the beam angle with an Angle Changer
- Auto strobe (OverDrive) light with robust housing & integrated current control
- Compact and powerful, designed for easy installation
- IP67-certified LED ring light
Technical Data
Optical Data
| Light Source | Red Light |
| Wavelength | 630 nm |
| Beam angle | ± 5 ° |
| Red light output | 482.4 W/m² |
| Measuring point distance | 200 mm |
| Compatible with | Angle Changer |
Environmental conditions
| Temperature Range | -10 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Power | 15.4 W |
| Peak power | 63.36 W |
| Current Consumption Continuous Mode (Ub = 24 V) | 0.66 A |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | 2.64 A |
| Flash duration (max.) | 10 ms |
| Duty cycle (max.) | < 0,1 |
| Rise time | 15 µs |
| Fall time | 15 µs |
| Input signal | PNP/NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Dimming | 0…10 V ≙ 100…30% |
| OverDrive | yes |
Mechanical Data
| Luminous Field | Ø 86 mm |
| Housing Material | Aluminum, anodised Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 5-pin |
| Max. cable lenght | 10 m |
| Weight | 280 g |
Function
| Operating modes | Continuous, strobe overdrive |
Standards and certificates
    |
Illumination methods
|
|
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
9b = Strobe Mode Indicator |
