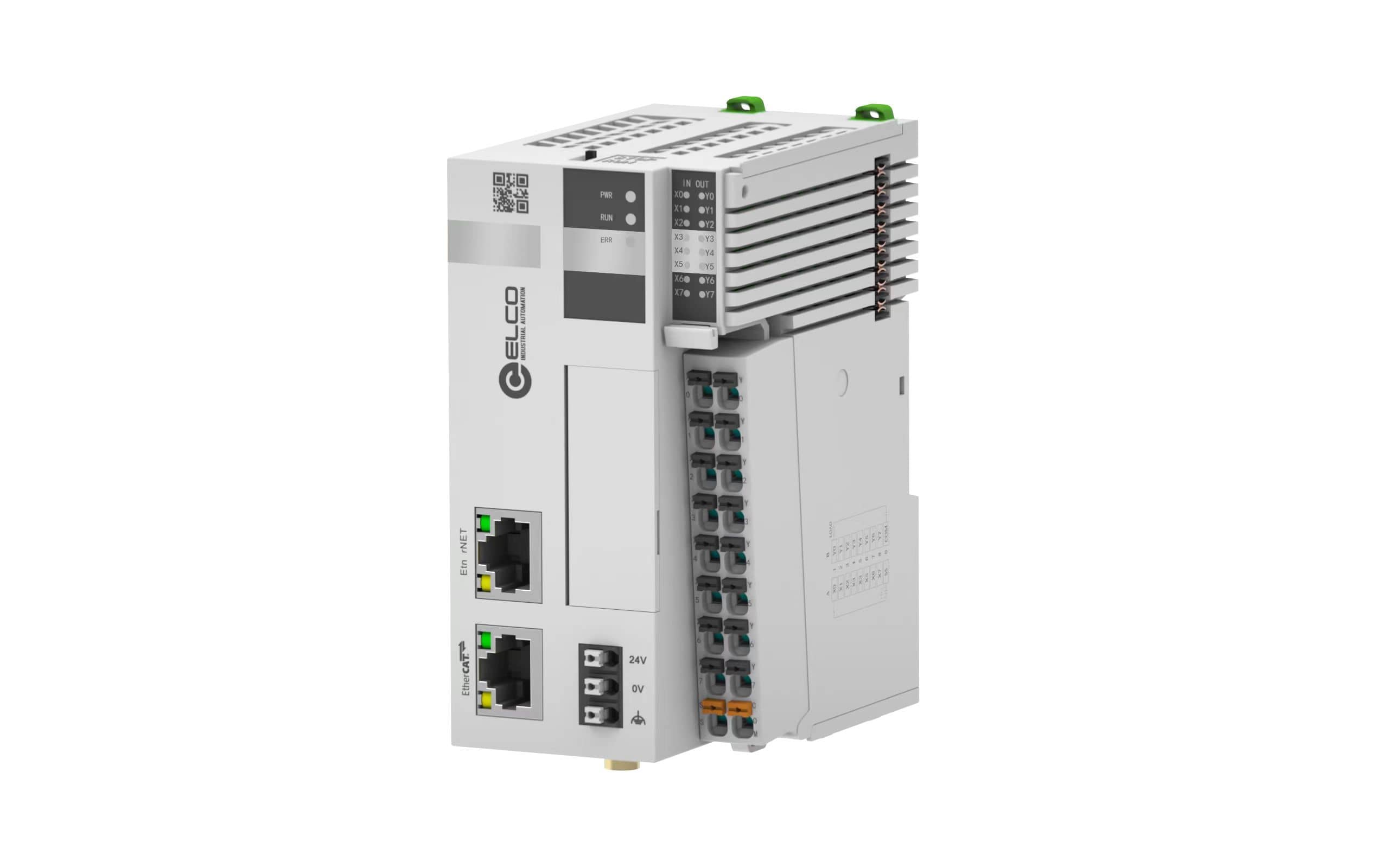

Logic X0-1AN-E Programmable Logic Controller
Elco Automation | Logic X0-1AN-E

Logic X0-1AN-E Programmable Logic Controller

Programmable Logic Controller, Logic X0 Series, Interface 1: RJ45 for EtherNet, Interface 2: RJ45 for EtherCAT, Interface 3: RS-232+RS-485, Communication protocol supports EtherCAT ModbusTCP, ModbusRTU, 8DI+8DO(NPN)

In Stock
$180.64 per unit

Applications: HMI & Controls

Technical Data

Communication protocol EtherCAT, ModbusRTU, ModbusTCP
Library Part1
High-speed IO None
Output type NPN
Hardware version V1.1
Certificate CE
Storage temperature -2 … +70 °C
Number of channels 8 DI, 8 DO
Software Codesys
EC-Axis quantity 0
Pulse-Axis quantity 0
IP rating IP20
Serial data interface RS-485, RS-232
Firmware version 3.5.19
Ambient temperature -20 … +55 °C
Mounting type Rail mounting DlN 35mm
Operating voltage 24 V DC

Documentation

Certificates & Compliance

  • Icon

    CE - ELCO_Logic X0_01_CE.pdf

    1 file(s) 456.14 KB
    Download

Datasheets

  • Icon

    Datasheet - ELCO_LogicX0_Datasheet_EN.pdf

    1 file(s) 2.97 MB
    Download
  • Icon

    Datasheet - ELCO_LogicX0_Datasheet_CN.pdf

    1 file(s) 3.07 MB
    Download

EPLAN Drawings

  • Icon

    EPLAN Drawing - ELCO_Logic X0-1AN-E.edz

    1 file(s) 3.75 MB
    Download

Software

  • Icon

    Configuration file - ELCO_LogicX0_v1.07.zip

    1 file(s) 1.07 MB
    Download
