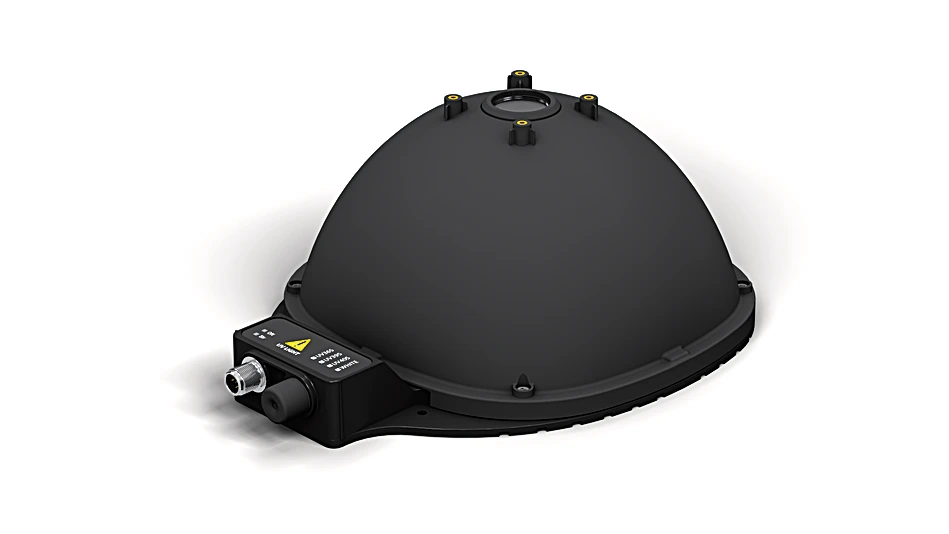

LMDX203 Multi-UV Dome Light 365 nm, 395 nm, 405 nm, white light, 130 mm
Multi-UV Dome Light
In Stock
$4,590.92
per unit
Applications: Machine Vision
Description
wenglor dome lights from the LMDXxx3 series are ideal for homogeneous illumination of glossy parts, demanding surfaces and fluorescent materials. The multi-UV dome light allows users to test multiple wavelengths (UV365, UV395, UV405 and white light) and select the most effective option. Operator safety is maximized by blocking direct UV radiation through the dome and an integrated filter. The dome light can be operated in continuous mode (white light only) or synchronized in strobe mode (UV and white light).
Features at a Glance
- All-in-one UV solution
- Homogeneous dome effect
- Integrated controller for easy setup
- Powerful flash mode
Technical Data
Optical Data
| Light Source | UV white light |
| Wavelength spectrum | 365 nm, 395 nm, 405 nm, white light |
Environmental conditions
| Temperature Range | -10 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Power | 2.3 W |
| Peak power | 23 W |
| Current Consumption Continuous Mode (Ub = 24 V) | 0.38 A |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | 0.96 A |
| Flash duration (max.) | 10 ms |
| Duty cycle (max.) | < 0,1 |
| Rise time | 15 µs |
| Fall time | 10 µs |
| Input signal | NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Dimming | 0….10 V ≙ 100…40% |
Mechanical Data
| Housing Material | Aluminum, anodised Plastic, ABS Plastic, PMMA Glass |
| Degree of Protection | IP65 |
| UL Enclosure Type | 1 |
| Connection | M12 × 1; 5-pin |
| Max. cable lenght | 5 m |
| Camera aperture inner diameter | 130 mm |
| Weight | 750 g |
Function
| Operating modes | Continuous, Strobe |
Standards and certificates
     |
Illumination methods
|
|
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
9b = Strobe Mode Indicator 9c = Color selection display |
Complementary Products
|
