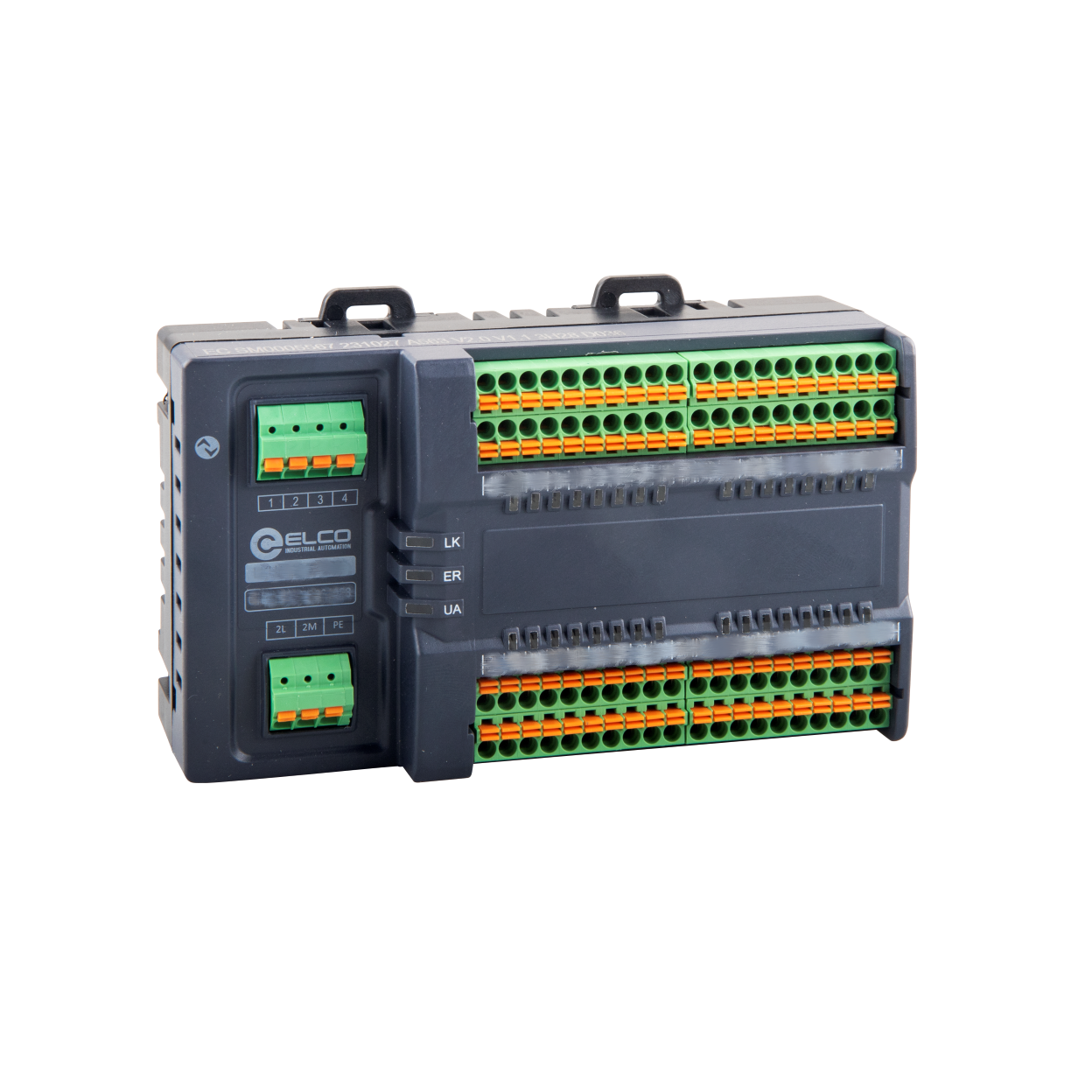

LKHA-1616N-TA IO-Link Sensor Hub
IO-Link Sensor Hub, V1.1.3, Class-A, IP20 module for DIN-Rail mounting, 16-pin digital input and 16-pin digital output interface, 16 DI, 16 DO, NPN, 4-pin terminal interface, With equipotential terminal, 24 V DC
In Stock
$185.27
per unit
Applications: HMI & Controls, Sensors & I/O
Technical Data
| IP rating | IP20 |
| Housing material | PPE + PS |
| Ambient temperature | -25 … +70 °C |
| Storage temperature | -40 … +85 °C |
| Certificate | CE, UL |
| Power connection | Terminal |
| Fieldbus connection | Terminal |
| Power supply | 18 … 30 V DC |
| Signal connection | Terminal |
| Signal type | Digital I/O |
| Number of channels | 16 DI + 16 DO |
| Input type | NPN |
| Output type | NPN |
| Dimensions | 120 x 70 x 38 mm |
| Communication protocol | IO-Link |
