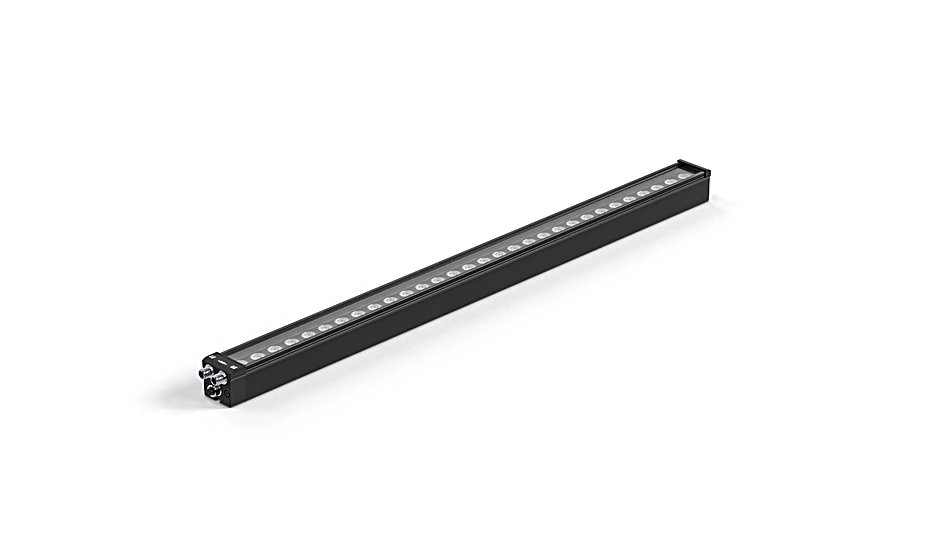

LBLW701 Bar Light Link white light, 750 mm
Bar Light Link
In Stock
$1,840.46
per unit
Applications: Machine Vision
Description
wenglor bar lights from the LBL series are suitable for both small and large working distances. The direct lights can create lighting effects like bright field, low angle of incidence, dark field and dome lighting. Some line scanning applications are also possible. The LBL bar lights can be synchronized in continuous mode or in strobe mode with the machine vision camera and other LBL lights and operated without an additional power supply. In combination with the ZBAG angle changers, the beam angle can be enlarged and designed flexibly.
Features at a Glance
- Daisy chain
- Flexibility: expand the beam angle with an Angle Changer
- No external control required
- Create patented curve effect to reduce LED hot spots
Technical Data
Optical Data
| Light Source | White Light |
| Color temperature | 6,500 K |
| Beam angle | ± 7 ° |
| White light output | 68,000 Lux |
| Measuring point distance | 200 mm |
| Compatible with | Angle Changer |
Environmental conditions
| Temperature Range | 0 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Power | 57.6 W |
| Current Consumption Continuous Mode (Ub = 24 V) | 2.4 A |
| Rise time | 15 µs |
| Fall time | 10 µs |
| Input signal | PNP/NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Dimming | 0…10 V ≙ 100…30% |
| OverDrive | no |
Mechanical Data
| Luminous Field Length (L) | 750 mm |
| Luminous Field Width (W) | 31.5 mm |
| Luminous Field | 750 × 31.5 mm |
| Housing Material | Aluminum, anodised Plastic, ABS Plastic, PC |
| Degree of Protection | IP65 |
| UL Enclosure Type | 1 |
| Optic Cover | Plastic, PMMA |
| Connection | 3 × M12 × 1; 5-pin |
| Max. cable lenght | 27 m |
| Weight | 1,500 g |
Function
| Operating modes | Continuous, Strobe |
Standards and certificates
     |
Illumination methods
|
|
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
9b = Strobe Mode Indicator |
