Description

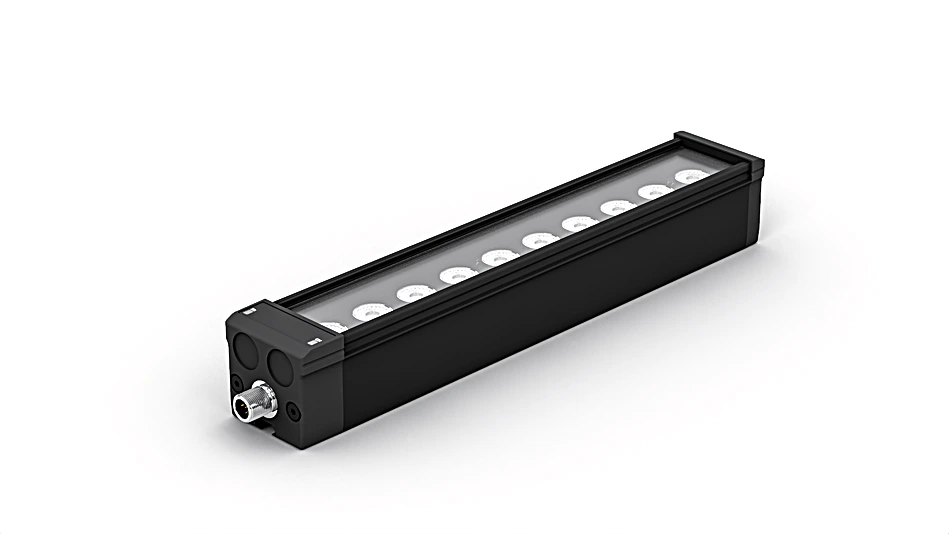

wenglor bar lights from the LBA series are suitable for both small and large working distances. The direct lights can create lighting effects like bright field, low angle of incidence, dark field and dome lighting. Some line scanning applications are also possible. The LBA bar lights can be operated in continuous mode with high intensity or synchronized with the machine vision camera in strobe mode with increased luminosity (OverDrive). In combination with the ZBAG angle changers, the beam angle can be enlarged and designed flexibly.
Features at a Glance
- Flexibility: expand the beam angle with an Angle Changer
- No external control required
- OverDrive
- Create patented curve effect to reduce LED hot spots
Technical Data
Optical Data
| Light Source | Infrared Light |
| Wavelength | 850 nm |
| Risk Group (EN 62471) | 1 |
| Beam angle | ± 7 ° |
| Infrared light output | 318 W/m² |
| Measuring point distance | 200 mm |
| Compatible with | Angle Changer |
Environmental conditions
| Temperature Range | -30 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Power | 14.4 W |
| Peak power | 57.6 W |
| Current Consumption Continuous Mode (Ub = 24 V) | 0.6 A |
| Current consumption flash mode OverDrive (operating voltage = 24 V) | 2.4 A |
| Flash duration (max.) | 30 ms |
| Duty cycle (max.) | < 0,2 |
| Rise time | 15 µs |
| Fall time | 10 µs |
| Input signal | PNP/NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Dimming | 0…10 V ≙ 100…30% |
| OverDrive | yes |
Mechanical Data
| Luminous Field Length (L) | 250 mm |
| Luminous Field Width (W) | 31.5 mm |
| Luminous Field | 250 × 31.5 mm |
| Housing Material | Aluminum, anodised Plastic, ABS Plastic, PC |
| Degree of Protection | IP65 |
| UL Enclosure Type | 1 |
| Optic Cover | Plastic, PMMA |
| Connection | M12 × 1; 5-pin |
| Max. cable lenght | 150 m |
| Weight | 688 g |
Function
| Operating modes | Continuous, Strobe |
Standards and certificates
      |
Illumination methods
|
|
Connection Diagram
 |
Ctrl. Panel
|
68 = Power LED
9b = Strobe Mode Indicator |
