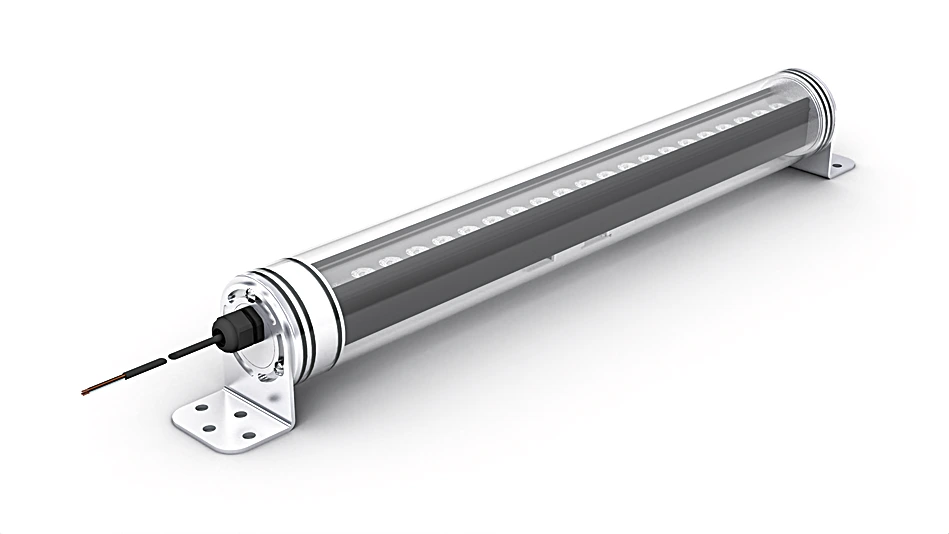

LB9I701 Bar Light IP69K infrared, 750 mm
Bar Light IP69K
In Stock
$3,672.31
per unit
Applications: Machine Vision
Description
wenglor’s LB9 series bar lights are industrial IP69K lights with food-safe housing. Suitable for environments that require high-pressure/high-temperature cleaning with steam and cleaning chemicals. The homogeneous and intense luminous flux of the illumination device enables many types of applications with working distances in the near and far range. The LB9 bar lights can be used in continuous mode or synchronized with the machine vision camera in strobe mode via PNP or NPN inputs. The standard L-brackets enable 360° rotation for easy installation.
Features at a Glance
- No external control required
- Mounting bracket included in scope of delivery
- Industry-leading performance of the LBA bar light
- Certified for wash-down environments (DIN 400 50 Part 9)
Technical Data
Optical Data
| Light Source | Infrared Light |
| Wavelength | 850 nm |
| Risk Group (EN 62471) | 1 |
| Beam angle | ± 17 ° |
| Infrared light output | 95.75 W/m² |
| Measuring point distance | 200 mm |
Environmental conditions
| Temperature Range | -20 … 40 °C |
| Storage temperature | -20 … 60 °C |
| Atmospheric humidity | < 80%, non-condensing |
Electrical Data
| Supply Voltage | 21.6 … 26.4 V DC |
| Power | 67.6 W |
| Current Consumption Continuous Mode (Ub = 24 V) | 3.6 A |
| Rise time | 15 µs |
| Fall time | 10 µs |
| Input signal | PNP/NPN |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Dimming | 0…10 V ≙ 100…30% |
| OverDrive | no |
Mechanical Data
| Luminous Field Length (L) | 750 mm |
| Housing Material | Stainless steel, V4A (1.4404 / 316L) Plastic, PMMA |
| Degree of Protection | IP69K |
| UL Enclosure Type | 1 |
| Optic Cover | Plastic, PMMA |
| Connection | Cable; 5-wire |
| Cable length (L) | 5 m |
| Cable Jacket Material | Plastic, PUR |
| Max. cable lenght | 27 m |
| Outer diameter (d) | 5.4 mm |
| Weight | 2,900 g |
Function
| Operating modes | Continuous, Strobe |
Standards and certificates
     |

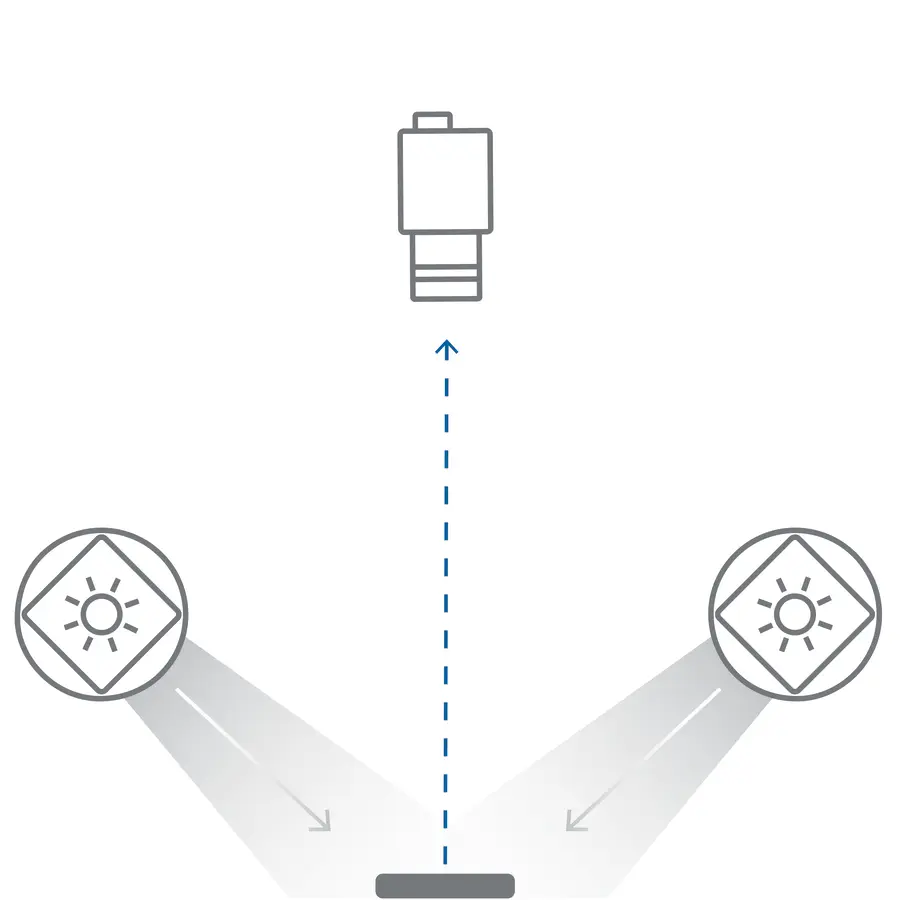

Illumination methods
|
|
