Description

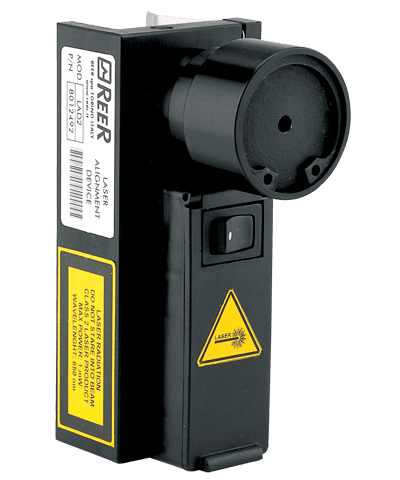

Laser alignment device allows a fast and reliable optical alignment of ReeR safety light curtains; also compatible with the use of the FMC floor mounting columns
LAD devices emit a laser beam with visible red light with useful range up to 100 m
The use is recommended for aligning light curtains that operate over long distances or multiple sides with the use of deflecting mirrors
Technical Data
Features
| Light source | Laser diode – 650 nm wave length |
| Laser max. power (mW) | 1 |
| Packaging dimensions HxLxW (mm) | 235 x 110 x 110 |
| Product class | A |
| Custom tariff | 9013908000 |
Electrical data
| Power supply (VDC) | 3 (2X AAA batteries) |
| Beam divergence (mrd) | < 0,5 |
Mechanical data
| Dimensions HxWxD (mm) | 117 x 55,68 x 72 |
| Fastening | Quick fastening to the light curtain |
| Mounting | Quick fastening to light curtain body |
