Description

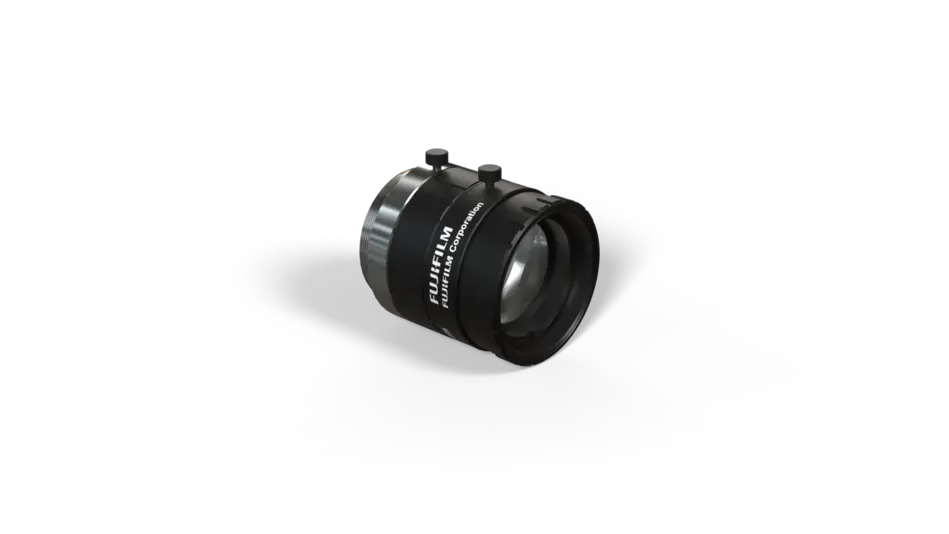

Fixed focal length lenses with C mount threaded connection can be used, for example, on Smart Cameras with C mount connection. Adjustable aperture values and adjustable focus offer the greatest possible variability for the implementation of complex vision applications.
Features at a Glance
- Adjustable aperture
- Adjustable focus
- Fixed focal length lens with C mount threaded connection
Technical Data
Optical Data
| Focal distance | 50 mm |
| Maximum sensor size | 2/3” |
| Minimum pixel size | 6.2 µm |
Mechanical Data
| Lens thread | C-Mount |
| Housing Material | Aluminum, anodised Plastic, PE |
| Optic Cover | Glass |
| Aperture | arrestable adjustable |
| Setting range aperture | F 2,3…22 |
| Minimum object distance | 500 mm |
| Filter Screw Size | M25.5 × 0.5 mm |
| Temperature Range | -10 … 50 °C |
| Weight | 45 g |
General Data
| Packaging unit | 1 Piece |
Standards and certificates
 |
Visual field for smart cameras with C mount
| Working Distance | 600 mm | 1000 mm | 1500 mm |
| Visual Field | 49 × 31 mm | 85 × 54 mm | 130 × 83 mm |
