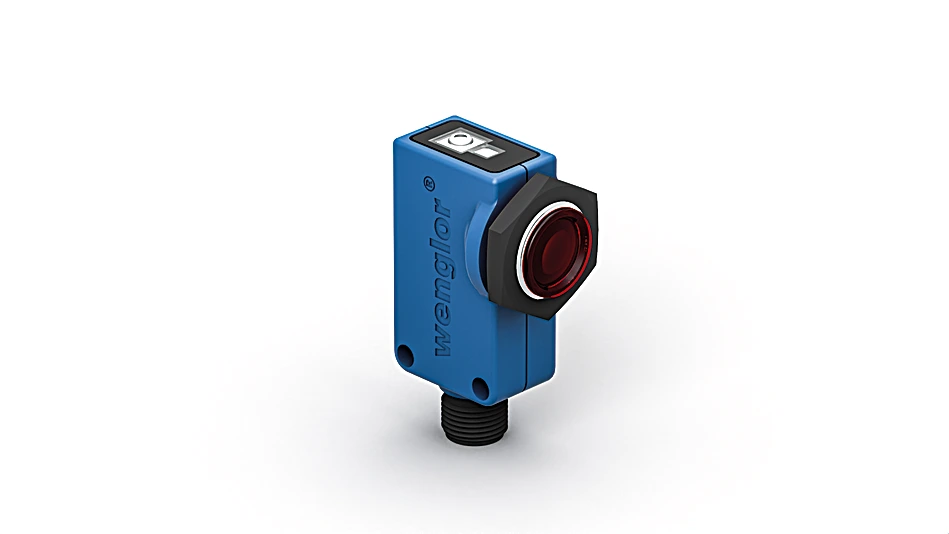

K1R87PCT2 Retro-Reflex Sensor for Transparent Objects
Retro-Reflex Sensor
In Stock
$259.00
per unit
Applications: Sensors & I/O
Description
A reflector must be used in combination with these sensors. wenglor has the right retro-reflex light barrier for every application. Even crystal-clear objects and sheet products can be reliably recognized. The sensor is easy to install with its integrated M18 threaded fixation, and can be easily protected as well. Time delay can be activated by RS-232 interface.
Features at a Glance
- Recognition of clear glass
- Dynamic readjustment of the switching threshold
- Simple installation
- Teach-in, external teach-in
Technical Data
Optical Data
| Range | 4,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Clear Glass Recognition | yes |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 5 ° |
| Single-Lens Optic | yes |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1,700 Hz |
| Response Time | 250 µs |
| On-/Off-Delay (RS-232) | 0 … 5 s |
| Temperature Drift | < 5 % |
| Temperature Range | -10 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | MT |
| Protection Class | III |
Mechanical Data
| Setting Method | Teach-In |
| Housing Material | Stainless steel, V2A (1.4305 / 303) Plastic, PBT |
| Full Encapsulation | yes |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 28 g |
General Data
| Scope of delivery | 1 × initial start-up instructions 1 × MUTTER-M18-E012 hex nut 1 × sensor |
Output
| PNP NO | yes |
| External teach-in input | yes |
| RS-232 with Adapterbox | yes |
Adjustable parameters
| Circuit | NC NC/NO NO |
| Other parameters | Off-delay On-delay |
| All other parameters can be found in the product documentation. |
Standards and certificates
     |
Connection Diagram
 |
Ctrl. Panel
|
06 = Teach Button
01 = Switching Status Indicator |
Reflector data
| RQ100BA | 0 … 4 m |
| RE18040BA | 0 … 3 m |
| RQ84BA | 0 … 4 m |
| RR84BA | 0 … 4 m |
| RE9538BA | 0 … 1.5 m |
| RE6151BM | 0 … 3.6 m |
| RR50_A | 0 … 3 m |
| RE6040BA | 0 … 3.5 m |
| RE8222BA | 0 … 2 m |
| RR34_M | 0 … 1.8 m |
| RE3220BM | 0 … 1.8 m |
| RE6210BM | 0 … 1.2 m |
| RR25_M | 0 … 1.4 m |
| RR25KP | 0 … 1 m |
| RR21_M | 0 … 1 m |
| ZRAE02B01 | 0 … 2 m |
| ZRME01B01 | 0 … 0.6 m |
| ZRME03B01 | 0 … 2.8 m |
| ZRMR02K01 | 0 … 0.8 m |
| ZRMS02_01 | 0 … 0.9 m |
| RF505 | 0 … 1.2 m |
| RF508 | 0 … 1.1 m |
| RF258 | 0 … 1 m |
| ZRDF__K01 | 0 … 4 m |
