JANUS J 2B TRX M12
Auto-manual restart + EDM, M12 connector
In Stock
$999.62
per unit
Applications: Safety Systems
Description
Safety Light Curtain: Type 4, SIL 3, SILCL 3, PL e, Cat. 4
Cross Section: 50 x 60 mm
Hardware configuration: no programming necessary, easy to install and replace
Configuration through main connector
Unshielded cables up to 100 m can be used to connect the Safety Light Curtain

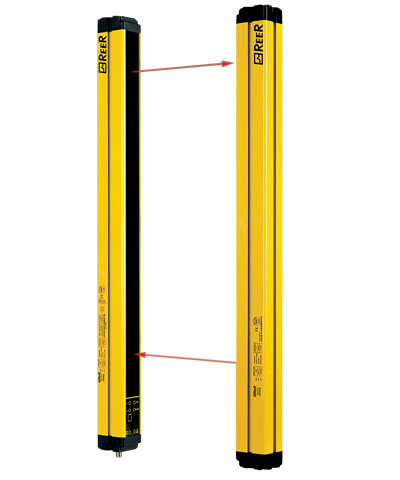

What’s in the Box: Active TX/RX Element, Passive Retro-Reflector Element and Standard Fastening Brackets
Technical Data
Features
| Safety level | Type 4 – PL e |
| Protected height (mm) | 510 |
| Resolution (mm) | Multi-beams |
| Max. range (m) | 6 |
| Restart | Built-in – User selectable automatic or manual |

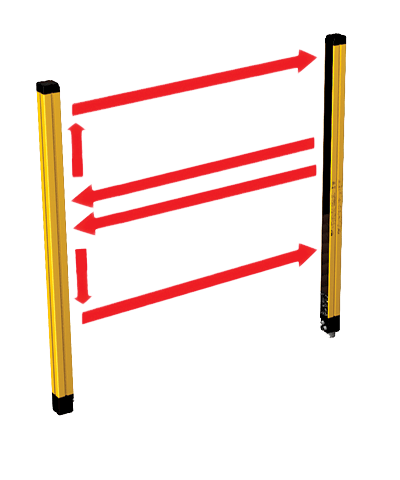

| Functioning system | TRX (Transceiver) |
| Safety level (SIL / PL) | Type 4 – SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C) | 0 … 55 |
| Response time (ms) | 7 |
| Number of beams | 2 |
| Max. length of the connection cables (m) | 100 |
| Signalling | 7 segment display and LEDs for light curtain’s status and diagnostics |
| Safety output type | 2 fail-safe PNP (500 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | M12 8-pole connector |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 4,83E-09 |
| Safety outputs | 2 fail-safe PNP (500 mA at 24 VDC) |
| Safety functions | Integrated |
| Detection | Access control |
| Operating Range (m) | Up to 6 |
| Overall height receiver or TRX active element (mm) | 741 |
| Overall height emitter or TRX passive element (mm) | 723 |
| Protective enclosures | None |
| Packaging dimensions HxLxW (mm) | 145 x 820 x 200 |
| Product class | B |
| Custom tariff | 85365019 |
Electrical data
| Power supply (VDC) | 24 ± 20% |
Mechanical data
| Cross section dimensions (mm) | 50 x 60 |
| Degree of protection | IP65 |
| Fastening | Back slot, side slot with set of LH type brackets (included). SFB 4J swivel brackets (optional) |
