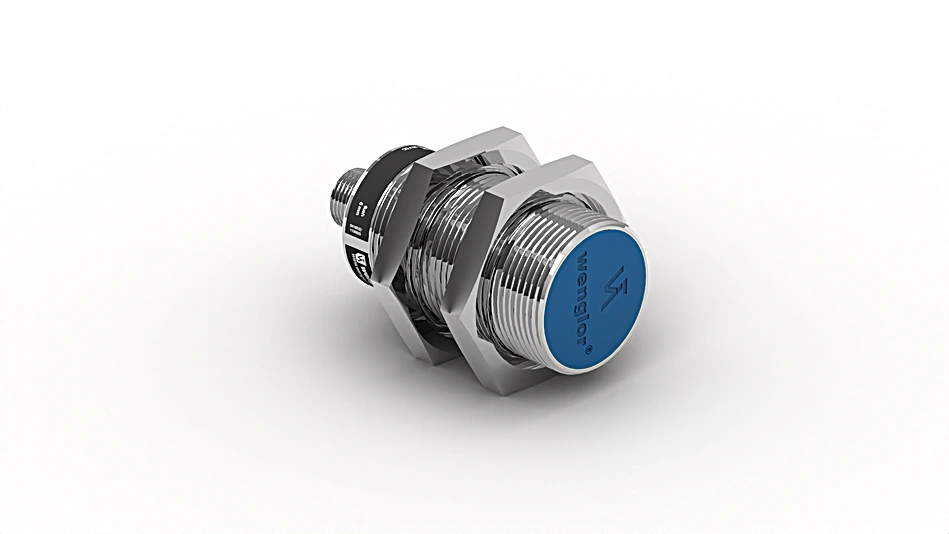

Technical Data
Inductive Data
| Working Range |
2 … 8 mm |
| Measuring Distance |
5 mm |
| Measuring Range |
6 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al |
1,1/1,1/1,1 |
| Mounting |
Flush |
| Mounting A/B/C/D in mm |
0/30/24/0 |
| Standard Target FE360, thickness 1 mm |
30 × 30 mm |
| Linearity |
< 1 % |
| Resolution |
2 µm |
Electrical Data
| Supply Voltage |
18 … 30 V DC |
| Current Consumption (Ub = 24 V) |
< 30 mA |
| Cut-Off Frequency |
900 Hz |
| Temperature Drift |
6 µm/K |
| Temperature Range |
-10 … 70 °C |
| Analog Output |
0…10 V |
| Load Current Voltage Output |
< 1 mA |
| Resistant to Magnetic Fields |
yes |
| Short Circuit Protection |
yes |
| Reverse Polarity Protection |
yes |
| Protection Class |
III |
Mechanical Data
| Housing Material |
Brass, nickel-plated |
| Sensing face |
Plastic, PBT |
| Full Encapsulation |
yes |
| Degree of Protection |
IP67 |
| Connection |
M12 × 1; 4-pin |
| Weight |
85 g |
General Data
| Stock Type |
X |
| Scope of delivery |
1 × initial start-up instructions
1 × MUTTER-M30-E001 hex nut
1 × sensor |
| Packaging unit |
1 Piece |
Standards and certificates
Complementary Products
- Analog Evaluation Unit AW02
- IO-Link converter
|
