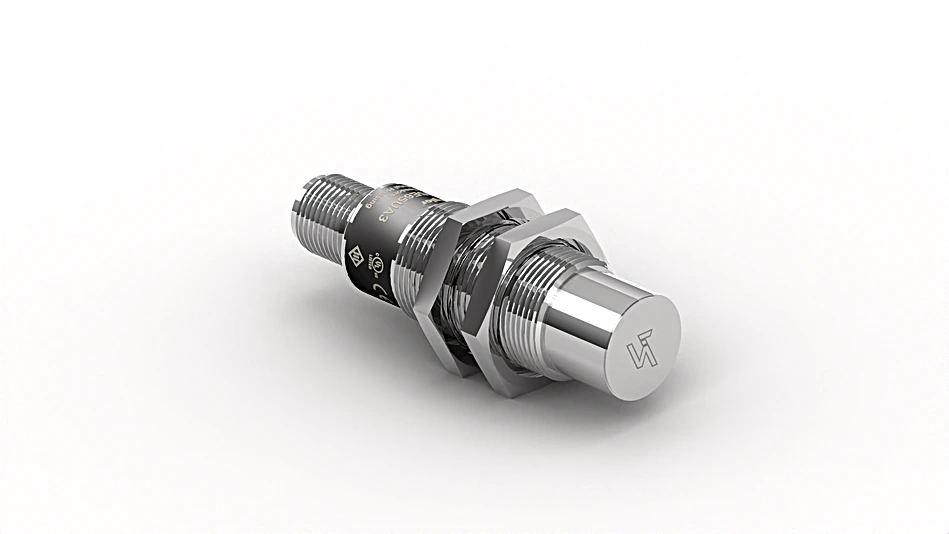

IW120SE65UA3 Inductive Sensor with Full-Metal Housing
Inductive Sensor
In Stock
$299.08
per unit
Applications: Sensors & I/O
Description
The inductive sensors with full-metal housing are suitable for harsh ambient conditions thanks to the 316L stainless steel housing. In addition, the sensors are ATEX-certified, which means that they can also be used in potentially explosive areas. The sensors with full-metal housing impress with their easy installation and reliable switching behavior. This product has been discontinued, but is still available as a spare part. Successor
Features at a Glance
- Pressure resistant
- Stainless steel housing
- IP68/IP69K
Technical Data
Inductive Data
| Switching Distance | 10 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al | 0,94/0,35/0,31 |
| Mounting | Non-flush |
| Mounting A/B/C/D in mm | 18/52/36/16 |
| Mounting A/B/C/D (V2A) in mm | 18/52/36/12 |
| Switching Hysteresis | < 15 % |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Switching Frequency | 400 Hz |
| Temperature Drift | < 10 % |
| Temperature Range | -25 … 80 °C |
| Switching Output Voltage Drop | < 2.5 V |
| Switching Output/Switching Current | 400 mA |
| Residual Current Switching Output | < 100 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
Mechanical Data
| Housing Material | Stainless steel, V4A |
| Sensing face | Stainless steel, V4A |
| Full Encapsulation | yes |
| Degree of Protection | IP69K IP68 |
| Connection | M12 × 1; 4-pin |
| Pressure Resistance Sensor Area | 45 bar |
| Ex II 3G Ex nA IIC T5 Gc X | yes |
| Ex II 3D Ex tc IIIC T90°C Dc IP6X X | yes |
| Weight | 70 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 2,206.08 a |
General Data
| Stock Type | X |
| Scope of delivery | 1 × information label ATEX Z0002 1 × Z0005 hex nut 1 × sensor |
| Packaging unit | 1 Piece |
Output
| PNP NC, PNP NO | yes |
Standards and certificates
      |
Connection Diagram
 |
