iR-ETN40P
Remote Communication Module with Built-in I/O
In Stock
$339.00
per unit
Applications: HMI & Controls, Sensors & I/O
Description
- Supports Modbus TCP & EtherNet/IP
- Includes Common I/O Modules, Cost-Effective
- Built-in High-Speed Inputs, Encoder-Ready
Technical Data
| No. of Bus Terminals | Depends on Power Consumption |
| Digital Input Point | Max. 224 (Including 24 built-in points) |
| Digital Output Point | Max. 112 (Including 16 built-in points) |
| Analog Input Channel | Max. 64 |
| Analog Output Channel | Max. 64 |
| ENET ACK (Green) | Device Status Indicator |
| ENET ERR (Red) | Device Error Indicator |
| IO RUN (Green) | Module Status Indicator |
| IO ERR (Red) | Module Error Indicator |
| Number of Inputs | 24 |
| Isolation | Optical Isolation |
| General Input | Number of Inputs: 20nInput Type: Sink OR SourcenLogic 1 Input Voltage: 15~28 VDCnLogic 0 Input Voltage: 0~5 VDCnResponse Time: OFF->ON: 5ms; ON->OFF: 1ms |
| High Speed Input | Number of Inputs: 4nInput Type: SINK INPUT (PNP)*nLogic 1 Input Voltage: 15~28 VDCnLogic 0 Input Voltage: 0~5 VDCnMax. Input Frequency: 20KHz |
| Output Logic | Source |
| Number of Outputs | 16 |
| Output Voltage | 11~28VDC |
| Output Current | 0.5A per channel (Max 4A) |
| Response Time | OFF->ON: 100μsnON->OFF: 600μs |
| Isolation | Optocoupler Isolation |
| High Speed Output | Total Number Of Outputs: 2nOutput Logic: SourcenOutput Voltage: 5VDCnOutput Current: 50mA per channelnMax. Output Frequency: 40KHznIsolation: Yes, optocoupler isolation |
| No. of Ports | 1 |
| Data Transfer Rate | 10/100 Mbps |
| Data Transfer Medium | 4 x 2 twisted pair copper cable; category 3 (10 Mbps), category 5 (100 Mbps) |
| Distance Between Stations | 100 m between hub/switch and Bus Coupler or between Bus Coupler and Bus Coupler |
| Protocol | Modbus TCP Server, EtherNet/IP adapter |
| Max. Number of TCP/IP Connections | 8 connections |
| Isolation | Network to Logic Isolation : Yes |
| Power Supply | 24 VDC (‐15%/+20%) |
| Power Dissipation | Nominal 100mA@24VDCnMax. 530mA@24VDC |
| Current for Internal Bus | Max. 2A@5VDC |
| Current Consumption | 350mA@5VDC |
| Electrical Isolation | Logic to Field Power Isolation: Yes |
| Back-up Fuse | ≤ 1.6A Self-recovery |
| PCB Coating | Yes |
| Enclosure | Plastic |

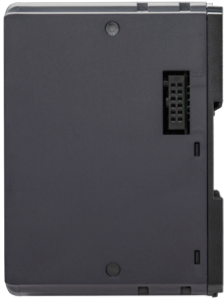

| Dimensions WxHxD | 64x 109 x 81 mm |
| Weight | Approx. 0.27 kg |

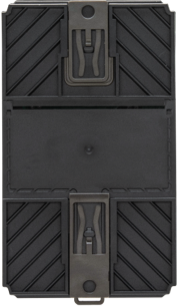

| Mount | 35mm DIN rail mounting |
| Protection Structure | IP20 |
| Storage Temperature | ‐20° ~ 70°C (‐4° ~ 158°F) |
| Operating Temperature | -10° ~ 60°C (14° ~ 140°F) |
| Relative Humidity | 10% ~ 90% (non‐condensing) |
| Altitude | Below 3,000 meters (70.1kPa) |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| CE | CE marked |
| UL | cULus Listed |
| EtherNet/IP | ODVA Conformance Test |
