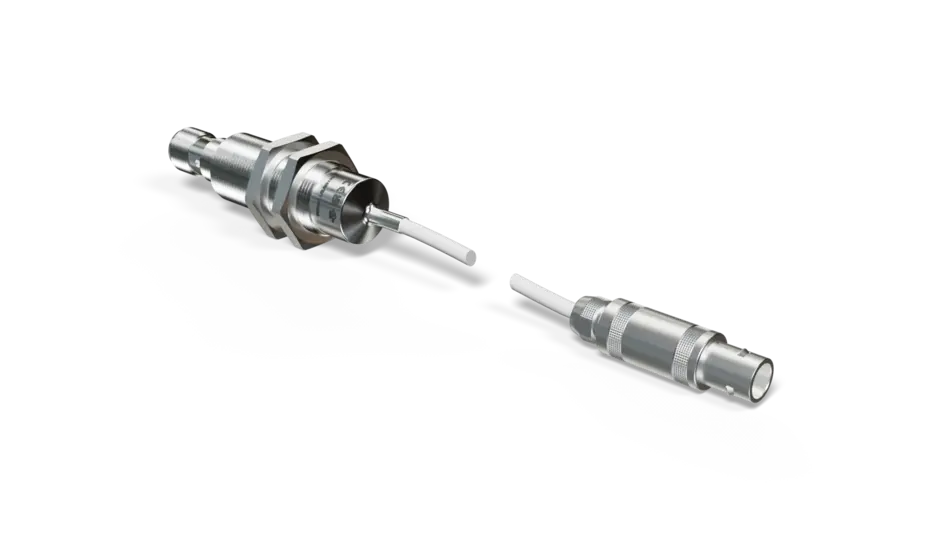

INTT351 Inductive Analysis Module for Extreme Temperature Ranges
Inductive analysis module
In Stock
$1,186.77
per unit
Applications: Sensors & I/O
Description
Features at a Glance
- Interchangeable sensor head
- Minimal mounting clearance thanks to wenglor weproTec
- Long service life at temperatures of up to 250 °C
- Switching distance configurable via IO-Link
Technical Data
Inductive Data
| Switching Distance | 40 mm |
| Use | With INTT320 |
| Intended use | For dynamic applications |
Electrical Data
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Switching Frequency | 50 Hz |
| Temperature Drift | < 10 % |
| Temperature range of the plug | 0 … 70 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 100 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Interface | IO-Link V1.1 |
| Protection Class | III |
Mechanical Data
| Analysis module material | Stainless steel, V2A (1.4305 / 303) |
| Degree of protection, sensor head | IP50 |
| Degree of protection of the plug | IP50 |
| Connection | M12 × 1; 4-pin |
| Cable length (L) | 20 m |
| Cable Jacket Material | Plastic, PFA |
| Outer diameter cable | 3.7 mm |
| Bending Radius | > 18.5 mm |
| PWIS-free | yes |
| Weight | 971 g |
Safety-relevant Data
| MTTFd (EN ISO 13849-1) | 3,706.54 a |
General Data
| Scope of delivery | 1 × analysis module 1 × initial start-up instructions 1 × MUTTER-M18-E003 hex nut |
Function
| Error Indicator | yes |
| Programmable switching distance | 30/35/40 mm |
Output
| IO-Link | yes |
| Error Output | yes |
| PNP NO | yes |
Adjustable parameters
| Output | Error Output Push-pull NPN PNP |
| Circuit | NC NC+NO NO |
Standards and certificates
      |
Connection Diagram
 |
Ctrl. Panel
|
01 = Switching Status Indicator
|
